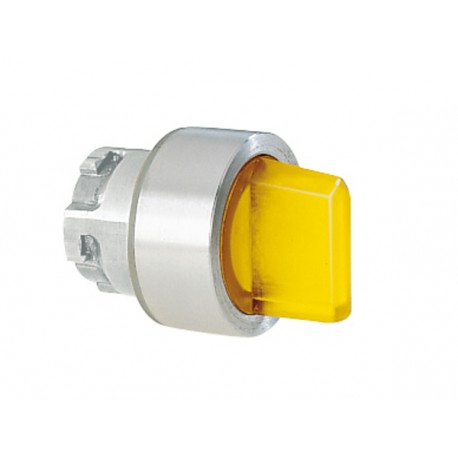

LOVATO ELECTRIC 8LM2TSL1204 8LM2TSL1204 LM2TSL1204 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TSL1204 LM2TSL1204 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1...

8LM2TSL1204

LM2TSL1204

LOVATO ELECTRIC

1 Pcs.

ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 - 1. RED Metallic Light Selector 2 positions "0-1" Fixed Red Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Red

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 8LM2TSL1204 illuminated selector switch actuator provides visual status indication alongside manual switching capabilities for industrial automation equipment. Operators manipulate the short thumb-grip to toggle electrical states while the illuminated cap communicates active system conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Colour control element (EF007167): Red
  • Colour indicator light cap (EF007165): Red
  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TSL1204

Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Red

Technical specifications

Type of actuator:
0 - 1
Colour:
Red
Order code8LM2TSL1204
Weight [g]24
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975042281
HS Code85365080
