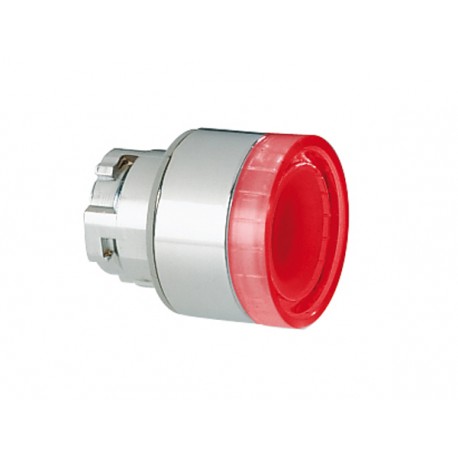

8LM2TBL104 LM2TBL104 LOVATO ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WITH ..
8LM2TBL104
LM2TBL104
LOVATO ELECTRIC
10 Pcs.
ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WITH SIDE VISIBILITY, RED
RED ILLUMINATED FLUSH BUTTON ACTUATOR
Illuminated button actuator, spring return, Ø22mm 8LM series metal, flush, with side visibility, red
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TBL104
Illuminated button actuator, spring return, Ø22mm 8LM series metal, flush, with side visibility, red
Technical specifications
- Colour:
- Red
| Order code | 8LM2TBL104 |
|---|---|
| Weight [g] | 33 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975041666 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Red |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
