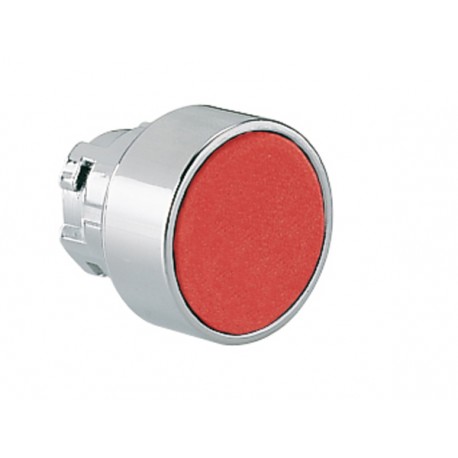

LOVATO ELECTRIC 8LM2TB104 8LM2TB104 LM2TB104 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB104 LM2TB104 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, RED

8LM2TB104

LM2TB104

LOVATO ELECTRIC

10 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, RED RED FLUSH BUTTON ACTUATOR Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, red

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric pushbutton actuator serves as a standard control element in electrical switchboards, enabling operators to manually actuate machine functions. This red flush unit is part of the 8LM metal series and includes a spring-return mechanism for momentary contact setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Red
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB104

Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, red

Technical specifications

Colour:
Red
Order code8LM2TB104
Weight [g]34
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040287
HS Code85365080
