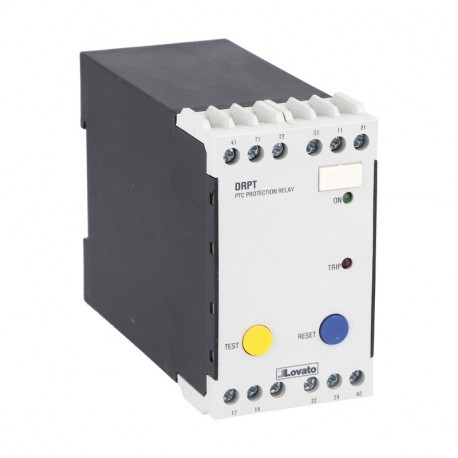

LOVATO ELECTRIC 31DRPTC24 31DRPTC24 DRPTC24 LOVATO THERMISTOR PROTECTION RELAY, 24VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

31DRPTC24 DRPTC24 LOVATO THERMISTOR PROTECTION RELAY, 24VDC

31DRPTC24

DRPTC24

LOVATO ELECTRIC

1 Pcs.

THERMISTOR PROTECTION RELAY, 24VDC PTC thermistor protection relay. DIN 35 mm. 24VDC. Thermistor protection relays, 24VDC

Automation > Relay for thermistor protection (PTC)
Motor protection relays - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 31DRPTC24 thermistor protection relay functions as a dedicated thermal safety device designed to monitor motor windings against excessive heat buildup. By evaluating resistance values from embedded PTC sensors, the component helps prevent costly motor burnouts within automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Screw connection
  • External reset possible (EF003426): Yes
  • Error registration possible (EF003423): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Depth (EF000049): 100 mm
  • Height (EF000040): 79 mm
  • Width (EF000008): 45 mm

More info

▲

31DRPTC24

Thermistor protection relays, 24VDC

Technical specifications

Type of product:
Thermistor protection relays
Reset mode:
Manual or automatic
Type of mounting:
DIN rail 35mm
Rated supply voltage:
24VDC
Order code31DRPTC24
Weight [g]196
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]084X050X107
Volume [cm³]449.4
Bar code [EAN13]8013975049693
HS Code85389091

245.94 £
