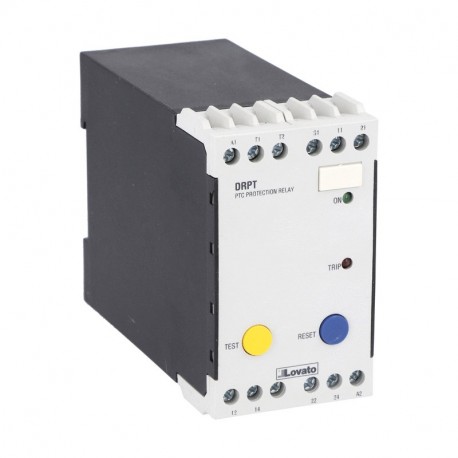

31DRPT24 DRPT24 LOVATO THERMISTOR PROTECTION RELAY, 24VAC
31DRPT24
DRPT24
LOVATO ELECTRIC
1 Pcs.
Automation > Relay for thermistor protection (PTC)
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lovato Electric 31DRPT24 thermistor protection relay serves as a dedicated monitoring device for detecting overheating in industrial electric motors. By interfacing with PTC sensor loops built into motor windings, this unit disconnects control power before thermal stress damages insulation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Connection type auxiliary circuit (EF006820): Screw connection
- External reset possible (EF003426): Yes
- Error registration possible (EF003423): No
- With detachable clamps (EF003340): No
- Number of contacts as change-over contact (EF008257): 2
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of measuring circuits (EF003425): 1
- Depth (EF000049): 100 mm
- Height (EF000040): 79 mm
- Width (EF000008): 45 mm
More info
▲31DRPT24
Thermistor protection relays, 24VAC
Technical specifications
- Type of product:
- Thermistor protection relays
- Reset mode:
- Manual or automatic
- Type of mounting:
- DIN rail 35mm
- Rated supply voltage:
- 24VAC 50/60Hz
| Order code | 31DRPT24 |
|---|---|
| Weight [g] | 294 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 084X050X107 |
| Volume [cm³] | 449.4 |
| Bar code [EAN13] | 8013975600498 |
| HS Code | 85389091 |
