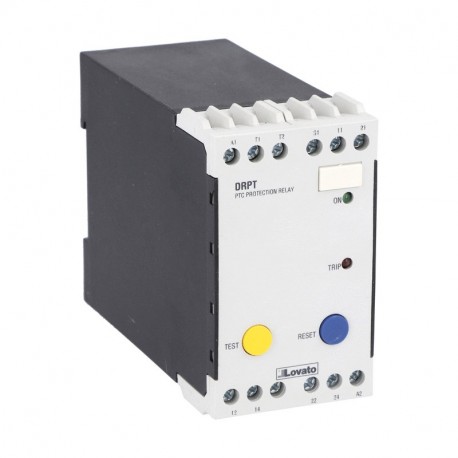

31DRPT110 DRPT110 LOVATO THERMISTOR PROTECTION RELAY, 110VAC
31DRPT110
DRPT110
LOVATO ELECTRIC
1 Pcs.
Automation > Relay for thermistor protection (PTC)
Motor protection relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric 31DRPT110 thermistor protection relay offers reliable thermal supervision for industrial motor installations by tracking sensor resistance variations. These protective monitoring devices prevent costly motor failures resulting from locked rotors, cooling system failures, or excessive ambient temperatures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Connection type auxiliary circuit (EF006820): Screw connection
- External reset possible (EF003426): Yes
- Error registration possible (EF003423): No
- With detachable clamps (EF003340): No
- Number of contacts as change-over contact (EF008257): 2
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of measuring circuits (EF003425): 1
- Depth (EF000049): 100 mm
- Height (EF000040): 79 mm
- Width (EF000008): 45 mm
More info
▲31DRPT110
Thermistor protection relays, 110VAC
Technical specifications
- Type of product:
- Thermistor protection relays
- Reset mode:
- Manual or automatic
- Type of mounting:
- DIN rail 35mm
- Rated supply voltage:
- 110VAC 50/60Hz
| Order code | 31DRPT110 |
|---|---|
| Weight [g] | 294 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 084X050X107 |
| Volume [cm³] | 449.4 |
| Bar code [EAN13] | 8013975601013 |
| HS Code | 85389091 |
