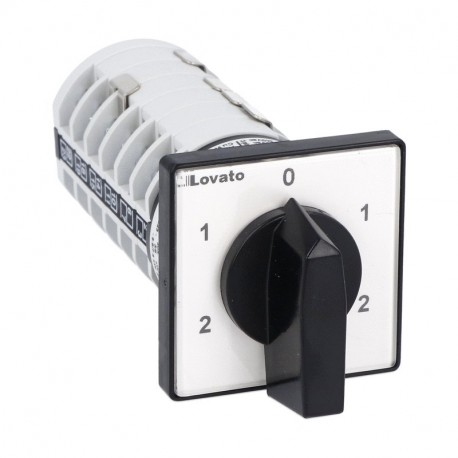

LOVATO ELECTRIC 7GN2020U 7GN2020U GN2020U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2020U GN2020U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

7GN2020U

GN2020U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SWITCHES WITH REVERSING (DAHLANDER) - 6 WAFERS - SCHEME 20, 20A 2-speed pole switch (Dahlander) 2-1-0-1-2 GN20 20 A Model U 48x48 Rotary cam switch 7GN series, Dahlander motor 2-speed reversing switch, 20A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a Lovato Electric 7GN2020U reversing Dahlander switch, this specialized component manages pole-changing operations for multi-speed induction motors. Such switches are commonly integrated into ventilation fans, machine tools, and material handling systems requiring variable motor speeds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): Reversing Dahlander switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 12
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW

More info

▲

7GN2020U

Rotary cam switch 7GN series, Dahlander motor 2-speed reversing switch, 20A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
20 - Dahlander motor 2-speed reversing switch
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2020U
Weight [g]165
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X122
Volume [cm³]305
Bar code [EAN13]3850144004634
HS Code85365080

66.39 £
