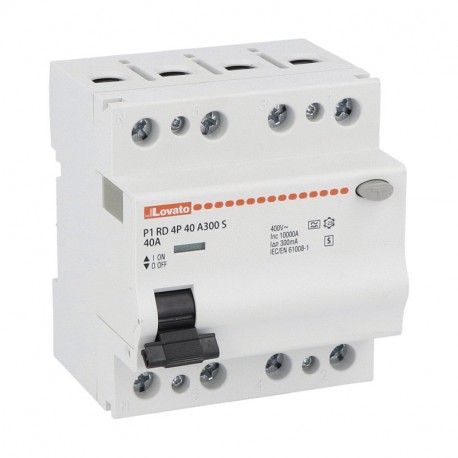

LOVATO ELECTRIC P1RD4P40A300S P1RD4P40A300S LOVATO RCCB 4P 40A IDN 300MA SELECTIVE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1RD4P40A300S LOVATO RCCB 4P 40A IDN 300MA SELECTIVE

P1RD4P40A300S

P1RD4P40A300S

LOVATO ELECTRIC

1 Pcs.

RCCB 4P 40A IDN 300MA SELECTIVE Residual current operated circuit breaker - selective, 4 modules, 4P - type A, 40A, 300mA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Selective coordination in electrical distribution is achieved using devices like the P1RD4P40A300S LOVATO RCCB 4P 40A IDN 300MA SELECTIVE. This specialized residual current circuit breaker allows upstream and downstream safety devices to coordinate tripping times, preventing widespread power loss during a localized ground fault.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): A
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): Yes
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No
  • Selective protection (EF002561): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Width in number of modular spacings (EF002950): 4
  • Pollution degree (EF002570): 2
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA

More info

▲

P1RD4P40A300S

Residual current operated circuit breaker - selective, 4 modules, 4P - type A, 40A, 300mA

Technical specifications

Type of product:
Residual current operated circuit breakers
Number of DIN modules:
4
Number of poles:
4P
Residual operation characteristic:
A selective
Rated residual current I∆n [mA]:
300 - selective
Rated current In [A]:
40
Compliance:
IEC
Order codeP1RD4P40A300S
Weight [g]326
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]115X076X078
Volume [cm³]681.72
Bar code [EAN13]8013975312926
HS Code85362010

226.52 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
