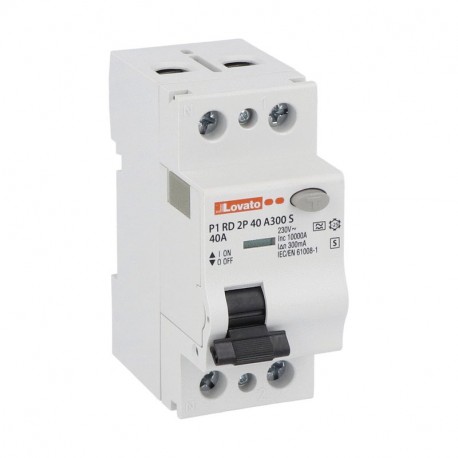

LOVATO ELECTRIC P1RD2P40A300S P1RD2P40A300S LOVATO RCCB 2P 40A IDN 300MA SELECTIVE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1RD2P40A300S LOVATO RCCB 2P 40A IDN 300MA SELECTIVE

P1RD2P40A300S

P1RD2P40A300S

LOVATO ELECTRIC

1 Pcs.

RCCB 2P 40A IDN 300MA SELECTIVE Residual current operated circuit breaker - selective, 2 modules, 2P - type A, 40A, 300mA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric part number P1RD2P40A300S is a selective residual current circuit breaker built to provide tiered fault protection in complex electrical networks. By allowing selective coordination with downstream breakers, this component ensures that only the affected circuit trips during an earth leakage event. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): A
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): Yes
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No
  • Selective protection (EF002561): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Width in number of modular spacings (EF002950): 2
  • Pollution degree (EF002570): 2
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA

More info

▲

P1RD2P40A300S

Residual current operated circuit breaker - selective, 2 modules, 2P - type A, 40A, 300mA

Technical specifications

Type of product:
Residual current operated circuit breakers
Number of DIN modules:
2
Number of poles:
2P
Residual operation characteristic:
A selective
Rated residual current I∆n [mA]:
300 - selective
Rated current In [A]:
40
Compliance:
IEC
Order codeP1RD2P40A300S
Weight [g]185
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]115X040X080
Volume [cm³]368
Bar code [EAN13]8013975312902
HS Code85362010

172.38 £
