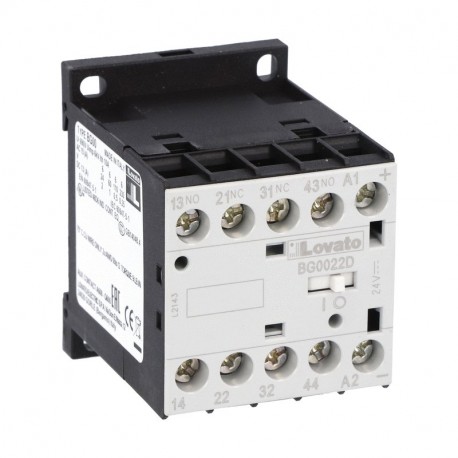

LOVATO ELECTRIC 11BG0022D220 11BG0022D220 BG0022D220 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 220VDC, 2N.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0022D220 BG0022D220 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 220VDC, 2N..

11BG0022D220

BG0022D220

LOVATO ELECTRIC

1 Pcs.

CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 220VDC, 2NO AND 2NC Minicont. Aux. 2NA+2NC 10A AC1 220V DC Control relay with DC coil, 220VDC, 2NO and 2NC

Automation > Contactor relay
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric control relay is an electromechanical switching component designed to manage low-power control circuits, route command signals, and provide logical interlocking between automated industrial machinery and main power switching devices. These relays allow control systems to interface safely with higher-voltage actuators and indicators in modern electrical switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Mounting method (EF000003): DIN-rail/screw
  • Rated control supply voltage DC (EF003980): 220 V
  • With LED indication (EF005950): No
  • Suitable for manual operation (EF002978): No
  • Interface (EF000594): No
  • Rated operation current Ie, 400 V (EF001378): 10 A

More info

▲

11BG0022D220

Control relay with DC coil, 220VDC, 2NO and 2NC

Technical specifications

Type of product:
Control relays with AC and DC control circuit
Number of poles:
4
Type of coil:
DC coil
Rated coil voltage [V]:
220
Type of built-in auxiliary contacts:
2NO+2NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0022D220
Weight [g]224
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975081297
HS Code85365080

43.49 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
