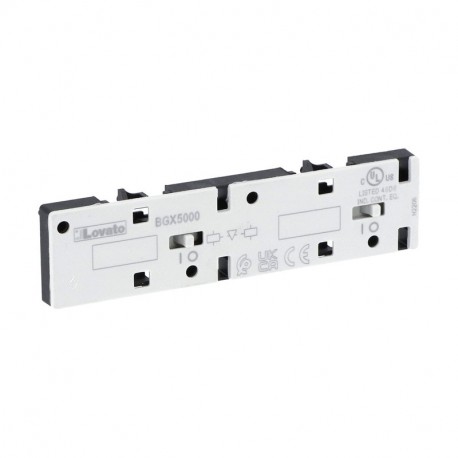

LOVATO ELECTRIC 11BGX5000 11BGX5000 BGX5000 LOVATO MECHANICAL INTERLOCK, FOR BG SERIES MINI-CONTACTORS, FOR ALL BG...A AND BG...D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BGX5000 BGX5000 LOVATO MECHANICAL INTERLOCK, FOR BG SERIES MINI-CONTACTORS, FOR ALL BG...A AND BG...D

11BGX5000

BGX5000

LOVATO ELECTRIC

1 Pcs.

MECHANICAL INTERLOCK, FOR BG SERIES MINI-CONTACTORS, FOR ALL BG...A AND BG...D Mechanical interlock for BG Mechanical interlock for BG…series mini-contactors, for all BG…A and BG...D

Automation > Mechanic interlock for switch
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for control panel configurations, the Lovato Electric 11BGX5000 BGX5000 LOVATO MECHANICAL INTERLOCK is applied across mini-contactor banks to prohibit simultaneous activation of paired contactors. Such interlocking elements are essential in motor reversing circuits to prevent phase-to-phase faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Auxiliary contacts, extendable (EF001450): Yes
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0

More info

▲

11BGX5000

Mechanical interlock for BG…series mini-contactors, for all BG…A and BG...D

Technical specifications

Type of product:
Accessories
Type of accessories:
Mechanical interlock
Accessories for:
11BG…A; 11BG…D
Order code11BGX5000
Weight [g]14
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]123X058X098
Volume [cm³]69.913
Bar code [EAN13]8013975080627
HS Code85365080

11.83 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
