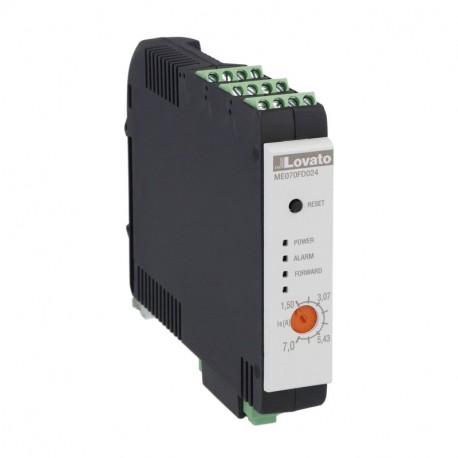

ME070FD024 LOVATO ELECTRONIC DOL STARTER 24VDC 7A
ME070FD024
ME070FD024
LOVATO ELECTRIC
1 Pcs.
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed by Lovato Electric, the ME070FD024 ME070FD024 LOVATO ELECTRONIC DOL STARTER 24VDC 7A functions as an electronic direct-on-line starter utilized for starting and protecting three-phase AC motors. Direct-on-line starters are standard components in manufacturing plants, pumps, and fans, providing straightforward motor control and overload protection directly across the power supply. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 24 V
- Overload release current setting (EF002336): 1.5 A
- Ambient temperature, upper operating limit (EF009603): 50 °C
- Rated operation current at AC-3, 400 V (EF009602): 7.0 A
- Rated power, 460 V, 60 Hz, 3-phase (EF009600): 3 kW
- Number of indicator lights (EF001965): 3
- Rated operation current Ie (EF001443): 7.0 A
- Rated operation power at AC-3, 400 V (EF001364): 3 kW
- Depth (EF000049): 140 mm
- Height (EF000040): 100 mm
- Width (EF000008): 22.5 mm
- Temperature compensated overload protection (EF009604): Yes
- Supporting protocol for SafetyBUS p (EF007527): No
- Supporting protocol for PROFIsafe (EF007526): No
- Supporting protocol for PROFINET IO (EF007525): No
- Supporting protocol for PROFINET CBA (EF007524): No
More info
▲ME070FD024
Electronic direct-on-line starter, 7A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC
Technical specifications
- Type of product:
- Electronic motor starter
- Functions:
- Direct-On-Line starter
- Safe torque Off (STO) safety function:
- No
- Thermal protection:
- Integrated, class 10A
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 7
- Type:
- Electronic direct-on-line starter, 7A, integrated motor thermal protection
| Order code | ME070FD024 |
|---|---|
| Weight [g] | 300 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 150X120X30 |
| Volume [cm³] | 540 |
| Bar code [EAN13] | 8013975320952 |
| HS Code | 85365003 |
