View larger
Images are for illustrative purposes only. Please refer to data sheet for details

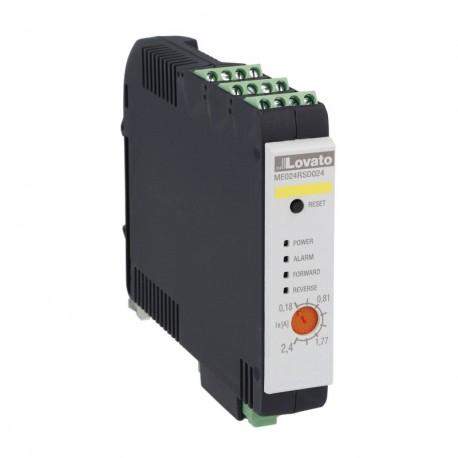

ME024RSD024 LOVATO ELECTRONIC. REV. STARTER WITH STO 24VDC 2.4A
ME024RSD024
ME024RSD024
LOVATO ELECTRIC
1 Pcs.
ELECTRONIC. REV. STARTER WITH STO 24VDC 2.4A
Electronic reversing starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC
TELEINVERTIT. ELETTR. CON STO 24VDC 2.4A
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ME024RSD024
Electronic reversing starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC
Technical specifications
- Type of product:
- Electronic motor starter
- Functions:
- Reversing starter
- Safe torque Off (STO) safety function:
- Built-in
- Thermal protection:
- Integrated, class 10A
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 2.4
- Type:
- Electronic reversing starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop
| Order code | ME024RSD024 |
|---|---|
| Weight [g] | 300 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 150X120X30 |
| Volume [cm³] | 540 |
| Bar code [EAN13] | 8013975321003 |
| HS Code | 85365003 |
227.08 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Overload release current setting (EF002336) | 0.18 A |
| Ambient temperature, upper operating limit (EF009603) | 50 °C |
| Rated operation current at AC-3, 400 V (EF009602) | 2.4 A |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 0.75 kW |
| Number of indicator lights (EF001965) | 4 |
| Rated operation current Ie (EF001443) | 2.4 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | 0.75 kW |
| Depth (EF000049) | 140 mm |
| Height (EF000040) | 100 mm |
| Width (EF000008) | 22.5 mm |
| Temperature compensated overload protection (EF009604) | Yes |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| With fuse (EF006693) | No |
| With short-circuit release (EF006691) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Suitable for rail mounting (EF003972) | Yes |
| External reset possible (EF003426) | Yes |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for LON (EF003017) | No |
| Suitable for emergency stop (EF001433) | Yes |
| With transformer (EF000278) | No |
| Type of motor starter (EF009598) | Reversing starter |
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 A |
| Degree of protection (IP) (EF005474) | IP20 |
