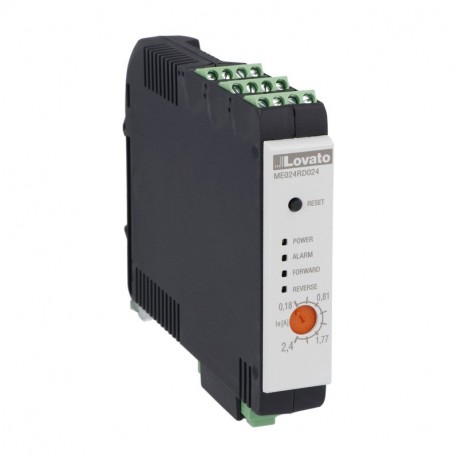

LOVATO ELECTRIC ME024RD024 ME024RD024 LOVATO ELECTRONIC REVERSING STARTER 24VDC 2.4A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME024RD024 LOVATO ELECTRONIC REVERSING STARTER 24VDC 2.4A

ME024RD024

ME024RD024

LOVATO ELECTRIC

1 Pcs.

ELECTRONIC REVERSING STARTER 24VDC 2.4A Electronic reversing starter, 2.4A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC TELEINVERTITORE ELETTRONICO 24VDC 2.4A

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Electronic reversing starters provide reliable bidirectional motor control and solid-state switching for automated systems requiring frequent operational changes. The Lovato Electric ME024RD024 integrates compact dimensions with reliable thermal overload protection for industrial drives.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Overload release current setting (EF002336): 0.18 A
  • Ambient temperature, upper operating limit (EF009603): 50 °C
  • Rated operation current at AC-3, 400 V (EF009602): 2.4 A
  • Rated power, 460 V, 60 Hz, 3-phase (EF009600): 0.75 kW
  • Number of indicator lights (EF001965): 4
  • Rated operation current Ie (EF001443): 2.4 A
  • Rated operation power at AC-3, 400 V (EF001364): 0.75 kW
  • Depth (EF000049): 140 mm
  • Height (EF000040): 100 mm
  • Width (EF000008): 22.5 mm
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No

More info

▲

ME024RD024

Electronic reversing starter, 2.4A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC

Technical specifications

Type of product:
Electronic motor starter
Functions:
Reversing starter
Safe torque Off (STO) safety function:
No
Thermal protection:
Integrated, class 10A
IEC operating current and power Ie (AC3) 400V [A/Kw]:
2.4
Type:
Electronic reversing starter, 2.4A, integrated motor thermal protection
Order codeME024RD024
Weight [g]300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]150X120X30
Volume [cm³]540
Bar code [EAN13]8013975320969
HS Code85365003

199.04 £
