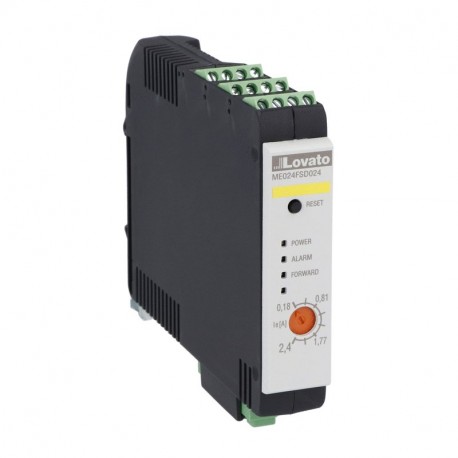

LOVATO ELECTRIC ME024FSD024 ME024FSD024 LOVATO ELECTRONIC. DOL STARTER WITH STO 24VDC 2.4A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME024FSD024 LOVATO ELECTRONIC. DOL STARTER WITH STO 24VDC 2.4A

ME024FSD024

ME024FSD024

LOVATO ELECTRIC

1 Pcs.

ELECTRONIC. DOL STARTER WITH STO 24VDC 2.4A Electronic direct-on-line starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC AVVIAT. DIR. ELETTR. CON STO 24VDC 2.4A

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Produced by Lovato Electric, the ME024FSD024 LOVATO ELECTRONIC. DOL STARTER WITH STO 24VDC 2.4A operates as an electronic direct-on-line motor starter featuring Safe Torque Off functionality. Electronic motor starters with integrated safety features are deployed in automated manufacturing lines and machinery to safeguard operators while controlling motor functions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Overload release current setting (EF002336): 0.18 A
  • Ambient temperature, upper operating limit (EF009603): 50 °C
  • Rated operation current at AC-3, 400 V (EF009602): 2.4 A
  • Rated power, 460 V, 60 Hz, 3-phase (EF009600): 0.75 kW
  • Number of indicator lights (EF001965): 3
  • Rated operation current Ie (EF001443): 2.4 A
  • Rated operation power at AC-3, 400 V (EF001364): 0.75 kW
  • Depth (EF000049): 140 mm
  • Height (EF000040): 100 mm
  • Width (EF000008): 22.5 mm
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No

More info

▲

ME024FSD024

Electronic direct-on-line starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC

Technical specifications

Type of product:
Electronic motor starter
Functions:
Direct-On-Line starter
Safe torque Off (STO) safety function:
Built-in
Thermal protection:
Integrated, class 10A
IEC operating current and power Ie (AC3) 400V [A/Kw]:
2.4
Type:
Electronic direct-on-line starter, 2.4A, integrated motor thermal protection and STO (Safe Torque Off) emergency stop
Order codeME024FSD024
Weight [g]300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]150X120X30
Volume [cm³]540
Bar code [EAN13]8013975320983
HS Code85365003

204.36 £
