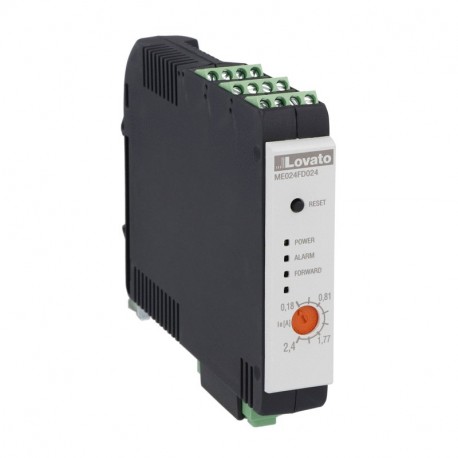

ME024FD024 LOVATO ELECTRONIC DOL STARTER 24VDC 2.4A
ME024FD024
ME024FD024
LOVATO ELECTRIC
1 Pcs.
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered as an electronic direct-on-line starter, the Lovato Electric ME024FD024 provides precise motor starting and protection capabilities. Direct-on-line starters are widely applied in industrial automation to initiate fixed-speed motors while offering essential overload protection for pumps, fans, and compressors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 24 V
- Overload release current setting (EF002336): 0.18 A
- Ambient temperature, upper operating limit (EF009603): 50 °C
- Rated operation current at AC-3, 400 V (EF009602): 2.4 A
- Rated power, 460 V, 60 Hz, 3-phase (EF009600): 0.75 kW
- Number of indicator lights (EF001965): 3
- Rated operation current Ie (EF001443): 2.4 A
- Rated operation power at AC-3, 400 V (EF001364): 0.75 kW
- Depth (EF000049): 140 mm
- Height (EF000040): 100 mm
- Width (EF000008): 22.5 mm
- Temperature compensated overload protection (EF009604): Yes
- Supporting protocol for SafetyBUS p (EF007527): No
- Supporting protocol for PROFIsafe (EF007526): No
- Supporting protocol for PROFINET IO (EF007525): No
- Supporting protocol for PROFINET CBA (EF007524): No
More info
▲ME024FD024
Electronic direct-on-line starter, 2.4A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC
Technical specifications
- Type of product:
- Electronic motor starter
- Functions:
- Direct-On-Line starter
- Safe torque Off (STO) safety function:
- No
- Thermal protection:
- Integrated, class 10A
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 2.4
- Type:
- Electronic direct-on-line starter, 2.4A, integrated motor thermal protection
| Order code | ME024FD024 |
|---|---|
| Weight [g] | 300 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 150X120X30 |
| Volume [cm³] | 540 |
| Bar code [EAN13] | 8013975320945 |
| HS Code | 85365003 |
