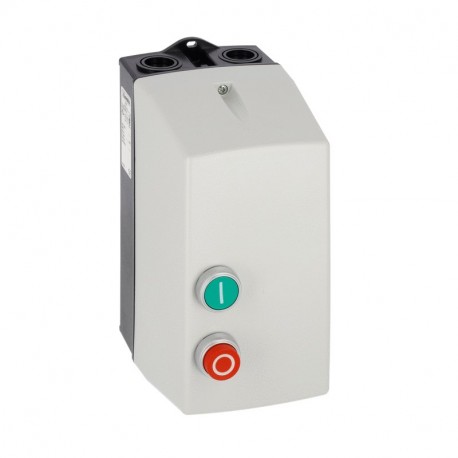

LOVATO ELECTRIC M2P0321223060B4 M2P0321223060B4 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M2P0321223060B4 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES..

M2P0321223060B4

0321223060

LOVATO ELECTRIC

1 Pcs.

DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RESET BUTTONS, WITH BF25/BF32 CONTACTOR, 32A MAX (15KW AT 400V),IP65. CONTACTOR COIL VOLTAGE 230VAC 60HZ DOL STARTER M2P 230/60 24-32A Direct-on-line-starter, 24...32A (15kW at 400V), IP65, contactor coil voltage 230VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric M2P0321223060B4 enclosed direct-on-line starter provides secure motor operation, combining an integrated thermal overload relay with convenient start and stop/reset push buttons. Enclosed starters of this type protect machinery in demanding industrial settings where localized control and high environmental sealing ratings are necessary.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Type of motor starter (EF009598): Direct starter
  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Degree of protection (IP) (EF005474): IP65
  • Rated control supply voltage AC 60 Hz (EF003979): 230 V
  • Overload release current setting (EF002336): 24 A
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for EtherNet/IP (EF007521): No
  • Supporting protocol for DeviceNet Safety (EF007520): No

More info

▲

M2P0321223060B4

Direct-on-line-starter, 24...32A (15kW at 400V), IP65, contactor coil voltage 230VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Technical specifications

Type of product:
Direct-on-line-starters
IEC operating current and power Ie (AC3) 400V [A/Kw]:
32A / 15kW
UL/CSA horsepower ratings 480V [HP]:
20
Type:
Enclosed with thermal overload relay
Type of coil:
AC coil
Type of pushbutton:
With Start-Stop/Reset buttons
Contactor coil voltage:
230VAC 60HZ
Order codeM2P0321223060B4
Weight [g]1300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]238X114X188
Volume [cm³]5100.816
Bar code [EAN13]8013975158906
HS Code85371098

448.69 £
