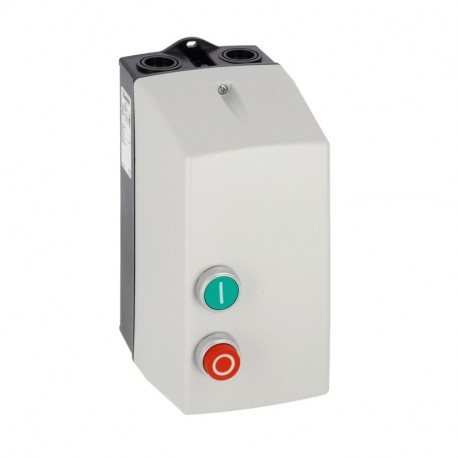

LOVATO ELECTRIC M2P0321212060B4 M2P0321212060B4 LOVATO DOL STARTER M2P 120/60 24-32A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M2P0321212060B4 LOVATO DOL STARTER M2P 120/60 24-32A

M2P0321212060B4

M2P0321212060B4

LOVATO ELECTRIC

1 Pcs.

DOL STARTER M2P 120/60 24-32A Direct-on-line-starter, 24...32A (15kW at 400V), IP65, contactor coil voltage 120VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons DIRECT STARTER, 24...32A (15KW AT 400V), CONTACTOR COIL VOLTAGE 120VAC 60HZ, WITH THERMAL RELAY IN IP65 INSULATED ENCLOSURE, WITH START AND STOP/RESET BUTTONS,

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric part number M2P0321212060B4 is an enclosed direct starter designed to provide reliable on-off switching and protection for three-phase electric motors. Enclosed direct-on-line starters are commonly deployed in standalone industrial machinery operating in demanding environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Type of motor starter (EF009598): Direct starter
  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Degree of protection (IP) (EF005474): IP65
  • Rated control supply voltage AC 60 Hz (EF003979): 120 V
  • Overload release current setting (EF002336): 24 A
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsaful (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for EtherNet/IP (EF007521): No
  • Supporting protocol for DeviceNet Safety (EF007520): No

More info

▲

M2P0321212060B4

Direct-on-line-starter, 24...32A (15kW at 400V), IP65, contactor coil voltage 120VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Technical specifications

Type of product:
Direct-on-line-starters
IEC operating current and power Ie (AC3) 400V [A/Kw]:
32A / 15kW
UL/CSA horsepower ratings 480V [HP]:
20
Type:
Enclosed with thermal overload relay
Type of coil:
AC coil
Order codeM2P0321212060B4
Weight [g]1300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]238X114X188
Volume [cm³]5100.816
Bar code [EAN13]8013975218532
HS Code85371098
