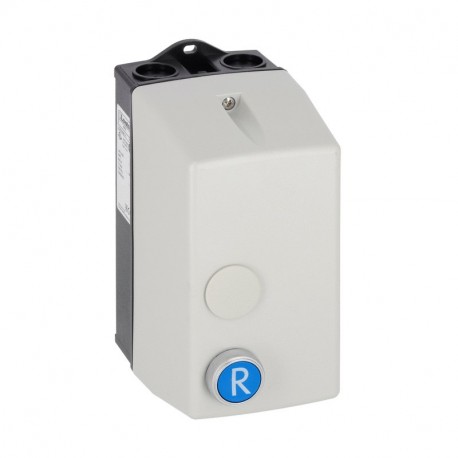

LOVATO ELECTRIC M1R0091012060 M1R0091012060 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITHOUT THERMAL OVERLOAD RELAY, WITH RESET PUSH BUTTON..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

M1R0091012060 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITHOUT THERMAL OVERLOAD RELAY, WITH RESET PUSH BUTTON..

Name: M1R0091012060 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITHOUT THERMAL OVERLOAD RELAY, WITH RESET PUSH BUTTON..
Brand: LOVATO ELECTRIC
SKU: 0091012060

Reference: M1R0091012060

Code: 0091012060

Manufacturer: LOVATO ELECTRIC

Units per package: 1 Pcs.

Description:

DIRECT-ON-LINE-STARTER, ENCLOSED WITHOUT THERMAL OVERLOAD RELAY, WITH RESET PUSH BUTTON, WITH BF09/BF18 CONTACTOR, 18A MAX. (≤440V), IP65. CONTACTOR COIL VOLTAGE 120VAC 60HZ DOL STARTER M1R 120/60 14A W/O RELAY Direct-on-line-starter, enclosed without thermal overload relay, with RESET pushbutton, with BF09/BF18 contactor, 18A max (≤440V), IP65. Contactor coil voltage 120VAC 60Hz

Categories:
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric enclosed direct-on-line starter (M1R0091012060) features an integrated reset push button and a protective housing for local motor control applications. Enclosed starters are deployed in industrial environments where equipment requires dedicated manual switching and environmental shielding.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Degree of protection (NEMA) (EF011959): 4X
Type of motor starter (EF009598): Direct starter
Voltage type for actuating (EF008242): AC
Type of electrical connection of main circuit (EF006819): Screw connection
Release class (EF006668): CLASS 10 A
Degree of protection (IP) (EF005474): IP65
Rated control supply voltage AC 60 Hz (EF003979): 120 V
Temperature compensated overload protection (EF009604): Yes
Supporting protocol for SafetyBUS p (EF007527): No
Supporting protocol for PROFIsafe (EF007526): No
Supporting protocol for PROFINET IO (EF007525): No
Supporting protocol for PROFINET CBA (EF007524): No
Supporting protocol for Foundation Fieldbus (EF007522): No
Supporting protocol for EtherNet/IP (EF007521): No
Supporting protocol for DeviceNet Safety (EF007520): No
With fuse (EF006693): No

More info

▲

M1R0091012060

Direct-on-line-starter, enclosed without thermal overload relay, with RESET pushbutton, with BF09/BF18 contactor, 18A max (≤440V), IP65. Contactor coil voltage 120VAC 60Hz

Technical specifications

Type of product:: Direct-on-line-starters
UL/CSA horsepower ratings 480V [HP]:: 5
Type:: Enclosed without thermal overload relay
Type of coil:: AC coil
Type of pushbutton:: With reset push button
Contactor coil voltage:: 120VAC 60HZ

Order code	M1R0091012060
Weight [g]	844
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	206X092X170
Volume [cm³]	3221.84
Bar code [EAN13]	8013975158678
HS Code	85371098
