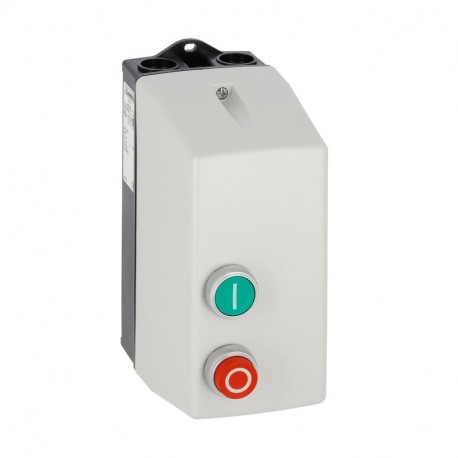

LOVATO ELECTRIC M1P0091246060B0 M1P0091246060B0 LOVATO DOL STARTER M1P 460/60 9-14A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M1P0091246060B0 LOVATO DOL STARTER M1P 460/60 9-14A

M1P0091246060B0

M1P0091246060B0

LOVATO ELECTRIC

1 Pcs.

DOL STARTER M1P 460/60 9-14A Direct-on-line-starter, 9…14A (5.5kW at 400V), IP65, contactor coil voltage 460VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric M1P0091246060B0 is an enclosed direct-on-line starter built to control and protect industrial electric motors in harsh operational environments. Housed motor starters feature robust NEMA enclosures to shield internal components from dust, moisture, and impact.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Type of motor starter (EF009598): Direct starter
  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Degree of protection (IP) (EF005474): IP65
  • Rated control supply voltage AC 60 Hz (EF003979): 460 V
  • Overload release current setting (EF002336): 9 A
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for EtherNet/IP (EF007521): No
  • Supporting protocol for DeviceNet Safety (EF007520): No

More info

▲

M1P0091246060B0

Direct-on-line-starter, 9…14A (5.5kW at 400V), IP65, contactor coil voltage 460VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Technical specifications

Type of product:
Direct-on-line-starters
IEC operating current and power Ie (AC3) 400V [A/Kw]:
13A / 5.5kW
UL/CSA horsepower ratings 480V [HP]:
5
Type:
Enclosed with thermal overload relay
Type of coil:
AC coil
Order codeM1P0091246060B0
Weight [g]1036
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]206X092X170
Volume [cm³]3221.84
Bar code [EAN13]8013975220214
HS Code85371098
