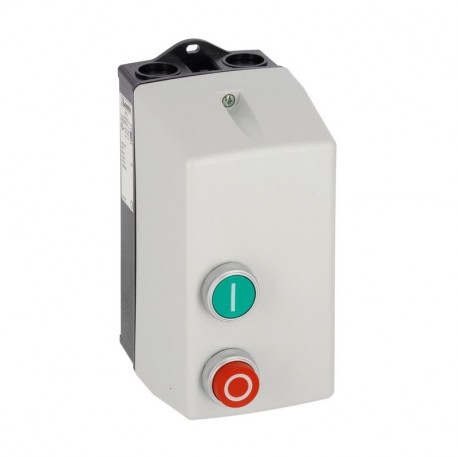

LOVATO ELECTRIC M0P00912460605 M0P00912460605 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RESE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M0P00912460605 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RESE..

M0P00912460605

00912460605

LOVATO ELECTRIC

1 Pcs.

DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RESET BUTTONS, WITH BG09/BG12 CONTACTOR, 5A MAX (1.5…2.2KW AT 400V), IP65. CONTACTOR COIL VOLTAGE 460VAC 60HZ DOL STARTER M0P009 460/60 3-5A Direct-on-line-starter, 3...5A (1.5...2.2kW at 400V), IP65, contactor coil voltage 460VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

M0P00912460605

Direct-on-line-starter, 3...5A (1.5...2.2kW at 400V), IP65, contactor coil voltage 460VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Technical specifications

Type of product:
Direct-on-line-starters
IEC operating current and power Ie (AC3) 400V [A/Kw]:
5A / 2.2kW
UL/CSA horsepower ratings 480V [HP]:
3
Type:
Enclosed with thermal overload relay
Type of coil:
AC coil
Type of pushbutton:
With Start-Stop/Reset buttons
Contactor coil voltage:
460VAC 60HZ
Order codeM0P00912460605
Weight [g]760
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]187X092X160
Volume [cm³]2752.64
Bar code [EAN13]8013975179949
HS Code85371098

203.77 £


ETIM for M0P00912460605 Low-voltage industrial controls and switchgear (EC001037)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) 4X
Type of motor starter (EF009598) Direct starter
Voltage type for actuating (EF008242) AC
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Type of electrical connection of main circuit (EF006819) Screw connection
Release class (EF006668) CLASS 10 A
Degree of protection (IP) (EF005474) IP65
Rated control supply voltage AC 60 Hz (EF003979) 460 V
Overload release current setting (EF002336) 3 A
Temperature compensated overload protection (EF009604) Yes
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
With fuse (EF006693) No
With short-circuit release (EF006691) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for SERCOS (EF006657) No
Suitable for rail mounting (EF003972) No
External reset possible (EF003426) Yes
Supporting protocol for other bus systems (EF003062) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for LON (EF003017) No
Suitable for emergency stop (EF001433) No
With transformer (EF000278) No
Rated conditional short-circuit current, type 2, 230 V (EF009606) 50000 A
Rated conditional short-circuit current, type 2, 400 V (EF009605) 50000 A
Ambient temperature, upper operating limit (EF009603) 60 °C
Rated operation current at AC-3, 400 V (EF009602) 5 A
Rated operation power at AC-3, 230 V, 3-phase (EF009599) 2.2 kW
Number of indicator lights (EF001965) 0
Rated operation current Ie (EF001443) 5 A
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Rated operation power at AC-3, 400 V (EF001364) 2.2 kW
Depth (EF000049) 140 mm
Height (EF000040) 184 mm
Width (EF000008) 88 mm
