> LOVATO ELECTRIC > Electromechanical starters - LOVATO ELECTRIC > 009122206033
LOVATO ELECTRIC M0P009122206033 M0P009122206033 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

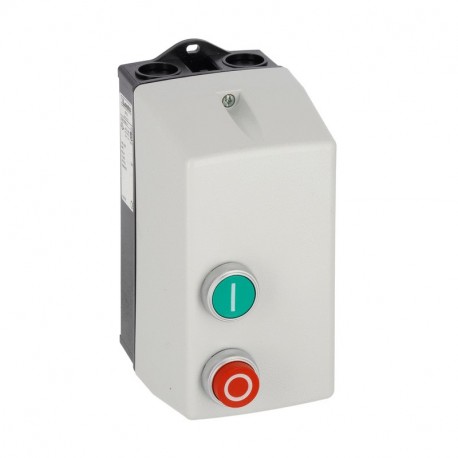

M0P009122206033 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES..

M0P009122206033

009122206033

LOVATO ELECTRIC

1 Pcs.

DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RESET BUTTONS, WITH BG09/BG12 CONTACTOR, 3.3A MAX (1.1KW A 400V), IP65. CONTACTOR COIL VOLTAGE 220VAC 60HZ DOL STARTER M0P 220/60 2-3,3A Direct-on-line-starter, 2...3.3A (1.1kW at 400V), IP65, contactor coil voltage 2200VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons DIRECT STARTER, 2...3.3A (1.1KW AT 400V), CONTACTOR COIL VOLTAGE 2200VAC 60HZ, WITH THERMAL RELAY IN IP65 INSULATED ENCLOSURE, WITH START AND STOP/RESET BUTTONS,

Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosed direct-on-line-starter assemblies like the Lovato Electric M0P009122206033 house essential motor protection components inside dust and moisture resistant housings. These protective control units are commonly deployed in washdown or outdoor industrial spaces to operate three-phase motors safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Type of motor starter (EF009598): Direct starter
  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10 A
  • Degree of protection (IP) (EF005474): IP65
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V
  • Overload release current setting (EF002336): 2 A
  • Temperature compensated overload protection (EF009604): Yes
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Supporting protocol for PROFINET CBA (EF007524): No
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for EtherNet/IP (EF007521): No
  • Supporting protocol for DeviceNet Safety (EF007520): No

More info

▲

M0P009122206033

Direct-on-line-starter, 2...3.3A (1.1kW at 400V), IP65, contactor coil voltage 2200VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons

Technical specifications

Type of product:
Direct-on-line-starters
IEC operating current and power Ie (AC3) 400V [A/Kw]:
3.3A / 1.1kW
UL/CSA horsepower ratings 480V [HP]:
2
Type:
Enclosed with thermal overload relay
Type of coil:
AC coil
Type of pushbutton:
With Start-Stop/Reset buttons
Contactor coil voltage:
2200VAC 60HZ
Order codeM0P009122206033
Weight [g]760
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]187X092X160
Volume [cm³]2752.64
Bar code [EAN13]8013975191347
HS Code85371098

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
