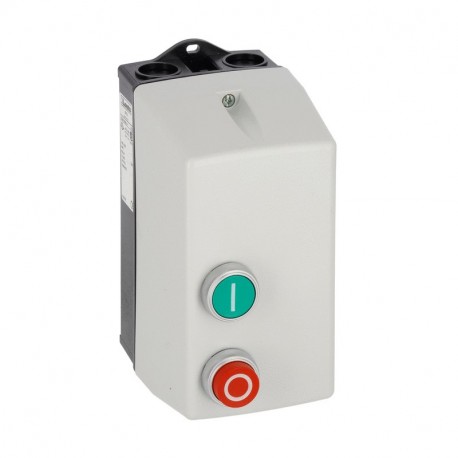

M0P009122206010 LOVATO DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES..
M0P009122206010
009122206010
LOVATO ELECTRIC
1 Pcs.
Automation > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M0P009122206010 Lovato Electric DIRECT-ON-LINE-STARTER, ENCLOSED WITH THERMAL OVERLOAD RELAY, WITH START AND STOP/RES.. operates as a protective enclosed direct-on-line motor starter equipped with local control pushbuttons and thermal overload protection. These standalone units offer secure housing for motor control in distributed industrial environments exposed to dust and moisture. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (NEMA) (EF011959): 4X
- Type of motor starter (EF009598): Direct starter
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Release class (EF006668): CLASS 10 A
- Degree of protection (IP) (EF005474): IP65
- Rated control supply voltage AC 60 Hz (EF003979): 220 V
- Overload release current setting (EF002336): 6 A
- Temperature compensated overload protection (EF009604): Yes
- Supporting protocol for SafetyBUS p (EF007527): No
- Supporting protocol for PROFIsafe (EF007526): No
- Supporting protocol for PROFINET IO (EF007525): No
- Supporting protocol for PROFINET CBA (EF007524): No
- Supporting protocol for Foundation Fieldbus (EF007522): No
- Supporting protocol for EtherNet/IP (EF007521): No
- Supporting protocol for DeviceNet Safety (EF007520): No
More info
▲M0P009122206010
Direct-on-line-starter, 6...10A (3...4kW at 400V), IP65, contactor coil voltage 2200VAC 60Hz, non-metallic enclosure, with thermal overload relay, with START and STOP/RESET buttons
Technical specifications
- Type of product:
- Direct-on-line-starters
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 10A / 4kW
- UL/CSA horsepower ratings 480V [HP]:
- 5
- Type:
- Enclosed with thermal overload relay
- Type of coil:
- AC coil
- Type of pushbutton:
- With Start-Stop/Reset buttons
- Contactor coil voltage:
- 2200VAC 60HZ
| Order code | M0P009122206010 |
|---|---|
| Weight [g] | 738 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 187X092X160 |
| Volume [cm³] | 2752.64 |
| Bar code [EAN13] | 8013975191361 |
| HS Code | 85371098 |
