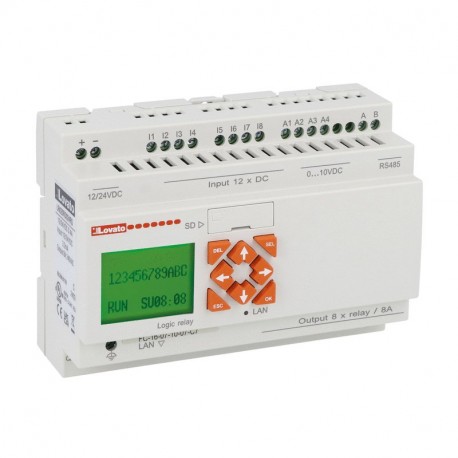

LRK20RD024RS LOVATO Programmable Relay 12I/8O 12-24VDC ETH.+RS485
LRK20RD024RS
LRK20RD024RS
LOVATO ELECTRIC
1 Pcs.
Automation > Logic module
Micro PLCs - LOVATO ELCTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric part number LRK20RD024RS is a programmable relay configured to manage automation logic, relay outputs, and communication networks in industrial plants. Programmable relays provide a cost-effective solution for small-to-medium machine control applications requiring flexible programming. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage DC (EF007534): 12 V
- Number of HW-interfaces wireless (EF006933): 0
- Number of interfaces PROFINET (EF006932): 0
- Number of HW-interfaces other (EF003027): 0
- Number of HW-interfaces parallel (EF003026): 0
- Number of HW-interfaces USB (EF003025): 0
- Number of HW-interfaces serial TTY (EF003024): 0
- Number of HW-interfaces RS-485 (EF003023): 1
- Number of HW-interfaces RS-422 (EF003022): 0
- Number of HW-interfaces RS-232 (EF003021): 0
- Number of HW-interfaces industrial Ethernet (EF003020): 1
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 4
- Number of digital outputs (EF001993): 8
- Number of digital inputs (EF001992): 12
- Depth (EF000049): 59.6 mm
More info
▲LRK20RD024RS
Micro PLC, base module with display, auxiliary supply voltage 12/24VDC, 12/8 relay, built-in Ethernet and RS485 port
Technical specifications
- Type of product:
- Micro PLC base modules
- Max I/O number:
- 20 (12 inputs + 8 outputs) up to 44 with LRE modules
- Rated supply voltage:
- 12/24VDC
- Type of built-in outputs:
- Relay
- Built-in communication port:
- Ethernet + RS485
- Display:
- LCD display, 4 lines x 16 characters
| Order code | LRK20RD024RS |
|---|---|
| Weight [g] | 340 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 132X065X098 |
| Volume [cm³] | 840.84 |
| Bar code [EAN13] | 8013975319246 |
| HS Code | 8537101090 |
