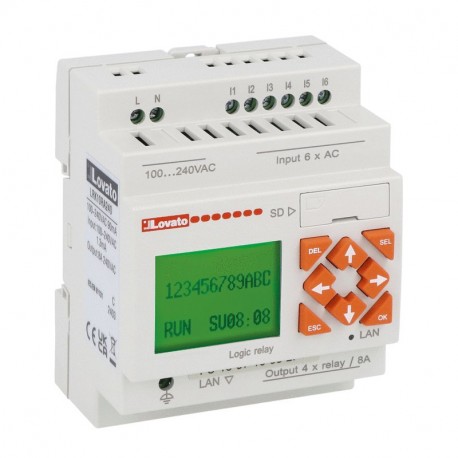

LOVATO ELECTRIC LRK10RA240 LRK10RA240 LOVATO Programmable 6E/4O 100-240VAC ETHERNET Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LRK10RA240 LOVATO Programmable 6E/4O 100-240VAC ETHERNET Relay

LRK10RA240

LRK10RA240

LOVATO ELECTRIC

1 Pcs.

Programmable 6E/4O 100-240VAC ETHERNET Relay Micro PLC, base module with display, auxiliary supply voltage 100…240VAC, 6/4 relay, built-in Ethernet port

Automation > Logic module
Micro PLCs - LOVATO ELCTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A programmable logic relay featuring Ethernet connectivity and AC power support for distributed industrial automation tasks. Engineers select these devices for machine control applications requiring reliable network communication and local switching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage AC 60 Hz (EF007533): 100 V
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Number of HW-interfaces wireless (EF006933): 0
  • Number of interfaces PROFINET (EF006932): 0
  • Number of HW-interfaces other (EF003027): 0
  • Number of HW-interfaces parallel (EF003026): 0
  • Number of HW-interfaces USB (EF003025): 0
  • Number of HW-interfaces serial TTY (EF003024): 0
  • Number of HW-interfaces RS-485 (EF003023): 0
  • Number of HW-interfaces RS-422 (EF003022): 0
  • Number of HW-interfaces RS-232 (EF003021): 0
  • Number of HW-interfaces industrial Ethernet (EF003020): 1
  • Number of analogue outputs (EF001995): 0
  • Number of analogue inputs (EF001994): 0
  • Number of digital outputs (EF001993): 4
  • Number of digital inputs (EF001992): 6

More info

▲

LRK10RA240

Micro PLC, base module with display, auxiliary supply voltage 100…240VAC, 6/4 relay, built-in Ethernet port

Technical specifications

Type of product:
Micro PLC base modules
Max I/O number:
10 (6 inputs + 4 outputs) up to 34 with LRE modules
Rated supply voltage:
100…240VAC
Type of built-in outputs:
Relay
Built-in communication port:
Ethernet
Display:
LCD display, 4 lines x 16 characters
Order codeLRK10RA240
Weight [g]240
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]096X065X080
Volume [cm³]499.2
Bar code [EAN13]8013975319208
HS Code8537101090

145.32 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
