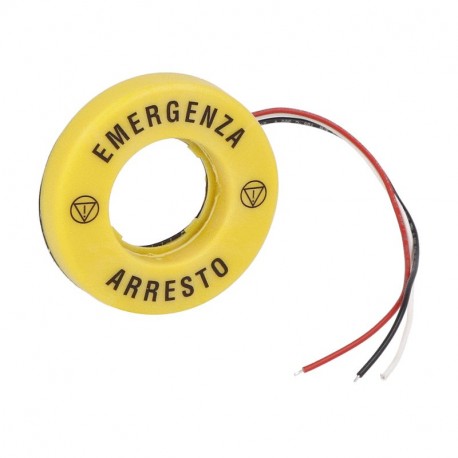

LPXDAU114110 LOVATO DISC LIGHT 60MM 24V EMERGENCY STOP
LPXDAU114110
LPXDAU114110
LOVATO ELECTRIC
1 Pcs.
DISC LIGHT 60MM 24V EMERGENCY STOP
Ø60mm emergency illuminated disk for Ø22mm mushroom buttons, 110…120VAC auxiliary supply, text: "EMERGENZA ARRESTO".
Automation > Emergency luminaire
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲LPXDAU114110
Ø60mm emergency illuminated disk for Ø22mm mushroom buttons, 110…120VAC auxiliary supply, text: "EMERGENZA ARRESTO".
Technical specifications
- Type of product:
- Illuminated disks
- Colour:
- Yellow
- Supply voltage:
- 110…120VAC
- Type of accessories:
- Illuminated disks
- Accessories for:
- LPCB66…;LPCBL66…;LPSB66...;LPSBL66...
| Order code | LPXDAU114110 |
|---|---|
| Weight [g] | 22 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 70X80X70 |
| Volume [cm³] | 392 |
| Bar code [EAN13] | 8013975320525 |
| HS Code | 85318070 |
| Feature Name | Feature Value |
|---|---|
| Nominal voltage (EF005127) | 110 V |
| Built-in diameter (EF000943) | 22 mm |
| Outer diameter (EF000015) | 60 mm |
| Exchangeable control gear (EF016286) | No |
| With pictogram (EF011099) | No |
| Constant light output (CLO) (EF009482) | No |
| With remote switch connection (EF007947) | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| With light source (EF005905) | No |
| With remote control (EF000483) | No |
| Light distributor (EF012170) | Other |
| Degree of protection (NEMA) (EF011959) | 12 |
| Type of wiring (EF011868) | Ending |
| Monitoring equipment (EF008091) | None |
| Degree of protection (IP) (EF005474) | IP69K |
| Material cover (EF004284) | Without cover |
| Lamp type (EF002423) | LED non-replaceable |
| Housing material (EF001596) | Plastic |
| Voltage type (EF000187) | AC |
| Housing colour (EF000136) | Yellow |
| Connection type (EF000124) | Unpreassembled connection cable |
| Function (EF000030) | Escape route lighting/signage |
| Protection class according to IEC 61140 (EF000004) | None |
