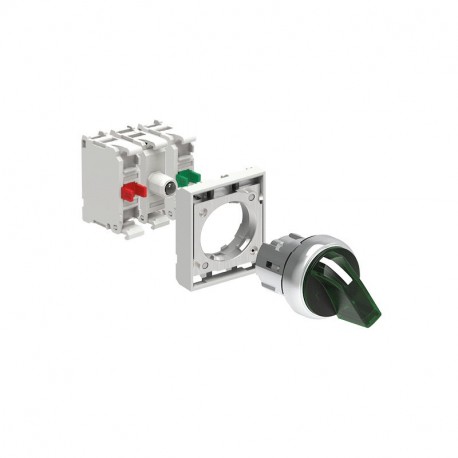

LOVATO ELECTRIC LPSSL130K11PM3 LPSSL130K11PM3 LOVATO KIT LPSSL1303 + 1NA + 1NC + LED 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSSL130K11PM3 LOVATO KIT LPSSL1303 + 1NA + 1NC + LED 230V

LPSSL130K11PM3

LPSSL130K11PM3

LOVATO ELECTRIC

1 Pcs.

KIT LPSSL1303 + 1NA + 1NC + LED 230V KIT metal illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

LPSSL130K11PM3

KIT metal illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum metal Ø22mm
Colour:
Green
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
185…265VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
3
Complete with mounting adapter:
Yes
Order codeLPSSL130K11PM3
Weight [g]79.8
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]188.504
Bar code [EAN13]8013975320198
HS Code85365080

47.65 £


ETIM for LPSSL130K11PM3 Low-voltage industrial controls and switchgear (EC001028)
Feature Name Feature Value
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Supply voltage lamp (EF006522) 230 V
Height opening (EF004778) 22 mm
Width opening (EF004565) 22 mm
Number of command positions (EF001372) 3
Hole diameter (EF000079) 22 mm
Switching function latching (EF007447) No
With front ring (EF006014) Yes
Spring-return (EF001407) Yes
Suitable for lighting (EF001142) Yes
Degree of protection (NEMA) (EF011959) Other
Construction type lens (EF006253) Round
Material front ring (EF005972) Metal
Degree of protection (IP) (EF005474) IP67/IP69K
Type of electric connection (EF003961) Screw connection
Colour front ring (EF002429) Chrome
Type of button (EF001546) Flat
Colour button (EF000190) Green
