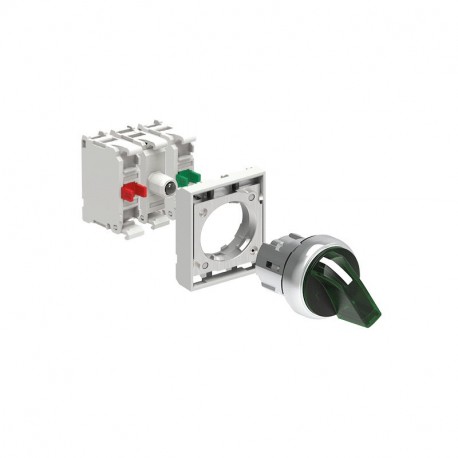

LOVATO ELECTRIC LPSSL130K11PB3 LPSSL130K11PB3 LOVATO KIT LPSSL1303 + 1NA + 1NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSSL130K11PB3 LOVATO KIT LPSSL1303 + 1NA + 1NC + LED 24V

LPSSL130K11PB3

LPSSL130K11PB3

LOVATO ELECTRIC

1 Pcs.

KIT LPSSL1303 + 1NA + 1NC + LED 24V KIT metal illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric kit supplies complete operator station hardware, combining a mechanical actuator, contact blocks, and an integrated LED light module for industrial switchboards. Electrical engineers deploy these pre-packaged assemblies to streamline installation times when adding pilot devices to machine control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 3
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection

More info

▲

LPSSL130K11PB3

KIT metal illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum metal Ø22mm
Colour:
Green
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
12…30VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
3
Complete with mounting adapter:
Yes
Order codeLPSSL130K11PB3
Weight [g]79
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]188.504
Bar code [EAN13]8013975320174
HS Code85365080

46.32 £
