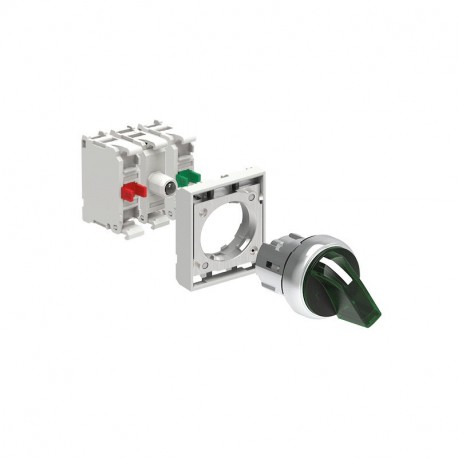

LOVATO ELECTRIC LPSSL120K11PM3 LPSSL120K11PM3 LOVATO KIT LPSSL1203 + 1NA + 1NC + LED 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSSL120K11PM3 LOVATO KIT LPSSL1203 + 1NA + 1NC + LED 230V

LPSSL120K11PM3

LPSSL120K11PM3

LOVATO ELECTRIC

1 Pcs.

KIT LPSSL1203 + 1NA + 1NC + LED 230V KIT metal illuminated selector switch actuator, 2 position, 0 1. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated control device kit containing contact blocks and an LED lamp provides a complete solution for industrial panel building. These pre-packaged assemblies simplify installation on machine facades where both visual status signaling and electrical switching are required. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 230 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 2
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection

More info

▲

LPSSL120K11PM3

KIT metal illuminated selector switch actuator, 2 position, 0 1. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum metal Ø22mm
Colour:
Green
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
185…265VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
2
Complete with mounting adapter:
Yes
Order codeLPSSL120K11PM3
Weight [g]79.8
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]188.504
Bar code [EAN13]8013975320181
HS Code85365080

47.65 £
