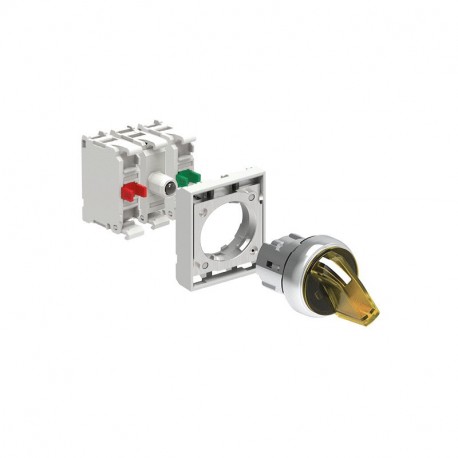

LOVATO ELECTRIC LPSSL120K11PB5 LPSSL120K11PB5 LOVATO KIT LPSSL1205 + 1NA + 1NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSSL120K11PB5 LOVATO KIT LPSSL1205 + 1NA + 1NC + LED 24V

LPSSL120K11PB5

LPSSL120K11PB5

LOVATO ELECTRIC

1 Pcs.

KIT LPSSL1205 + 1NA + 1NC + LED 24V KIT metal illuminated selector switch actuator, 2 position, 0 1. Yellow with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric control kit integrates an actuator, contact blocks, and illumination modules to supply complete operator control functionality on industrial enclosures. These assemblies enable precise manual command signaling in automated setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 2
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection

More info

▲

LPSSL120K11PB5

KIT metal illuminated selector switch actuator, 2 position, 0 1. Yellow with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum metal Ø22mm
Colour:
Yellow
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
12…30VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
2
Complete with mounting adapter:
Yes
Order codeLPSSL120K11PB5
Weight [g]79
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]188.504
Bar code [EAN13]8013975320228
HS Code85365080

46.32 £
