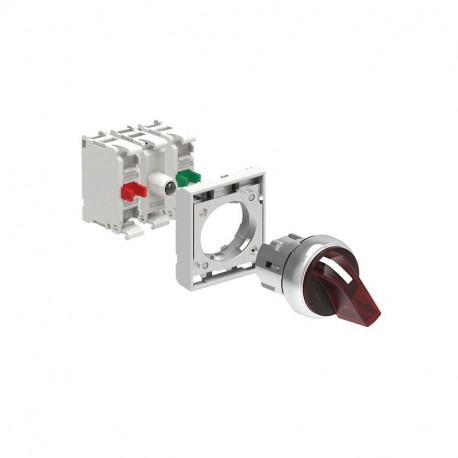

LOVATO ELECTRIC LPSSL120K11PB4 LPSSL120K11PB4 LOVATO KIT LPSSL1204 + 1NA + 1NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSSL120K11PB4 LOVATO KIT LPSSL1204 + 1NA + 1NC + LED 24V

LPSSL120K11PB4

LPSSL120K11PB4

LOVATO ELECTRIC

1 Pcs.

KIT LPSSL1204 + 1NA + 1NC + LED 24V KIT metal illuminated selector switch actuator, 2 position, 0 1. Red with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric kit integrates essential panel-building components into a single package, featuring an industrial actuator, contact elements, and internal illumination. Assembly technicians utilize these bundled parts to simplify wiring and mounting across various automation control desks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 2
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection

More info

▲

LPSSL120K11PB4

KIT metal illuminated selector switch actuator, 2 position, 0 1. Red with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum metal Ø22mm
Colour:
Red
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
12…30VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
2
Complete with mounting adapter:
Yes
Order codeLPSSL120K11PB4
Weight [g]79
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]188.504
Bar code [EAN13]8013975320204
HS Code85365080

46.32 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
