LPSS131K20 LOVATO KIT LPSS131 + 2NA
LPSS131K20
LPSS131K20
LOVATO ELECTRIC
1 Pcs.
Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric LPSS131K20 kit serves as a robust operator control assembly for industrial enclosures and harsh factory environments, providing dependable manual actuation and switching contacts. These assemblies are commonly employed on heavy manufacturing equipment, outdoor control stations, and washdown automation systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 2
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Number of command positions (EF001372): 2
- Hole diameter (EF000079): 22 mm
- Switching function latching (EF007447): No
- With front ring (EF006014): Yes
- Spring-return (EF001407): Yes
- Suitable for lighting (EF001142): No
- Construction type lens (EF006253): Round
- Material front ring (EF005972): Metal
- Degree of protection (IP) (EF005474): IP67/IP69K
- Type of electric connection (EF003961): Screw connection
- Colour front ring (EF002429): Chrome
More info
▲LPSS131K20

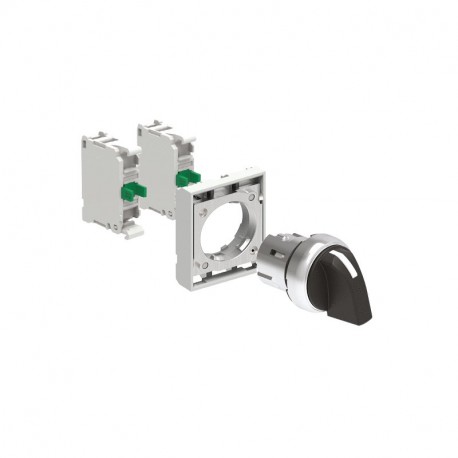

KIT metal selector switch actuator knob, 3 position, 1 > 0 < 2 with mounting adapter and 2 contact elements, 2NO. Screw termination
Technical specifications
- Type of product:
- Selector switches in KIT
- Series:
- Platinum metal Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Symbol:
- No
- Type of terminals:
- Screw
- Type of lever for selector switches:
- Short
- Type of positions for selector switches:
- 3
- Complete with mounting adapter:
- Yes
| Order code | LPSS131K20 |
|---|---|
| Weight [g] | 80.8 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X006 |
| Volume [cm³] | 175.304 |
| Bar code [EAN13] | 8013975320150 |
| HS Code | 85365080 |
