View larger
Images are for illustrative purposes only. Please refer to data sheet for details

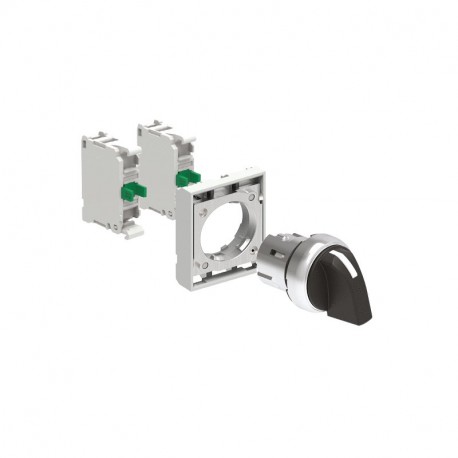

LPSS130K20 LOVATO KIT LPSS130 + 2NA
LPSS130K20
LPSS130K20
LOVATO ELECTRIC
1 Pcs.
KIT LPSS130 + 2NA
KIT metal selector switch actuator knob, 3 position, 1 0 2 with mounting adapter and 2 contact elements, 2NO. Screw termination
Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲LPSS130K20
KIT metal selector switch actuator knob, 3 position, 1 0 2 with mounting adapter and 2 contact elements, 2NO. Screw termination
Technical specifications
- Type of product:
- Selector switches in KIT
- Series:
- Platinum metal Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Symbol:
- No
- Type of terminals:
- Screw
- Type of lever for selector switches:
- Short
- Type of positions for selector switches:
- 3
- Complete with mounting adapter:
- Yes
| Order code | LPSS130K20 |
|---|---|
| Weight [g] | 80.8 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X006 |
| Volume [cm³] | 175.304 |
| Bar code [EAN13] | 8013975320143 |
| HS Code | 85365080 |
28.46 £
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 2 |
| Hole diameter (EF000079) | 22 mm |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Type of electric connection (EF003961) | Screw connection |
| Colour front ring (EF002429) | Chrome |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Black |
