LPSB6744K01 LOVATO KIT LPSB6744 + 1NC

LPSB6744K01

LPSB6744K01

LOVATO ELECTRIC

1 Pcs.

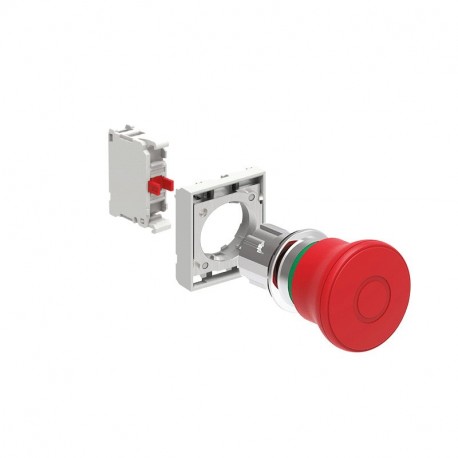

KIT LPSB6744 + 1NC KIT metal mushroom head pushbutton actuator, latch, pull to release, Ø40mm. For emergency stopping. ISO 13850. Red with mounting adapter and 1 contact element, NC. Screw termination

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Pushbutton kits provide machine builders and panel assemblers with complete operator control assemblies designed for standard industrial cutout dimensions. This Lovato Electric LPSB6744K01 unit ensures dependable spring-return actuation with robust environmental protection for demanding factory floors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome

More info

▲

LPSB6744K01

KIT metal mushroom head pushbutton actuator, latch, pull to release, Ø40mm. For emergency stopping. ISO 13850. Red with mounting adapter and 1 contact element, NC. Screw termination

Technical specifications

Type of product:
Pushbuttons in KIT
Type of actuator:
Mushroom head
Series:
Platinum metal Ø22mm
Colour:
Red
Illuminated element:
No
Symbol:
No
Type of terminals:
Screw
Latching mechanism:
Turn to release
Type of stopping for mushroom head:
ISO13850 Emergency
Complete with mounting adapter:
Yes
Order codeLPSB6744K01
Weight [g]130.6
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X008
Volume [cm³]224.028
Bar code [EAN13]8013975320129
HS Code85365080

38.74 £
