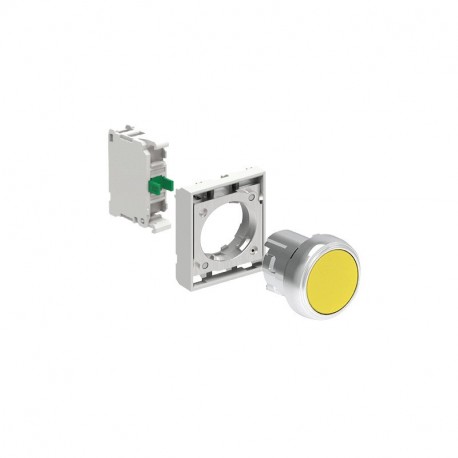

LOVATO ELECTRIC LPSB105K10 LPSB105K10 LOVATO KIT LPSB105 + 1NA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPSB105K10 LOVATO KIT LPSB105 + 1NA

LPSB105K10

LPSB105K10

LOVATO ELECTRIC

1 Pcs.

KIT LPSB105 + 1NA KIT metal pushbutton actuator, spring return, flush, yellow with mounting adapter and 1 contact element, NO. Screw termination

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric LPSB105K10 kit LPSB105 + 1NA functions as an operator interface control device designed for flush mounting on control panels and electrical switchboards. Pushbutton switches are standard components used by technicians to send manual control signals throughout industrial automation infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 1
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome

More info

▲

LPSB105K10

KIT metal pushbutton actuator, spring return, flush, yellow with mounting adapter and 1 contact element, NO. Screw termination

Technical specifications

Type of product:
Pushbuttons in KIT
Type of actuator:
Flush
Series:
Platinum metal Ø22mm
Colour:
Yellow
Illuminated element:
No
Symbol:
No
Type of terminals:
Screw
Latching mechanism:
Spring return
Complete with mounting adapter:
Yes
Order codeLPSB105K10
Weight [g]59.4
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X005
Volume [cm³]143.444
Bar code [EAN13]8013975319987
HS Code85365080

15.26 £
