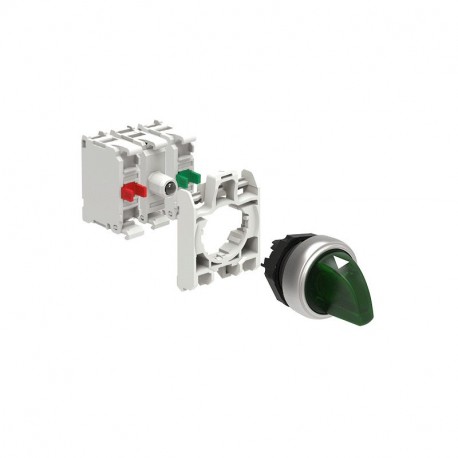

LOVATO ELECTRIC LPCSL130K11PM3 LPCSL130K11PM3 LOVATO KIT LPCSL1303 + 1NA + 1 NC + LED 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCSL130K11PM3 LOVATO KIT LPCSL1303 + 1NA + 1 NC + LED 230V

LPCSL130K11PM3

LPCSL130K11PM3

LOVATO ELECTRIC

1 Pcs.

KIT LPCSL1303 + 1NA + 1 NC + LED 230V KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric LPCSL130K11PM3 kit is an illuminated control and signaling device designed to provide visual status indication and operator interface functions in control panels. Pushbuttons and pilot lights of this style are standard across factory automation environments for starting processes, toggling modes, or displaying machine states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome
  • Colour button (EF000190): Green
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 230 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm

More info

▲

LPCSL130K11PM3

KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum chromed plastic Ø22mm
Colour:
Green
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
185…265VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
3
Complete with mounting adapter:
Yes
Order codeLPCSL130K11PM3
Weight [g]51.3
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X006
Volume [cm³]162.78
Bar code [EAN13]8013975319741
HS Code85365080

48.73 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
