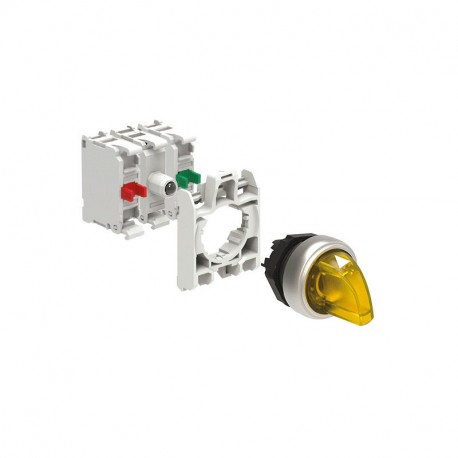

LOVATO ELECTRIC LPCSL130K11PB5 LPCSL130K11PB5 LOVATO KIT LPCSL1305 + 1NA + 1 NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCSL130K11PB5 LOVATO KIT LPCSL1305 + 1NA + 1 NC + LED 24V

LPCSL130K11PB5

LPCSL130K11PB5

LOVATO ELECTRIC

1 Pcs.

KIT LPCSL1305 + 1NA + 1 NC + LED 24V KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Yellow with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton kit serves as an essential component in electrical control panels, providing both manual signal activation and immediate visual verification of system statuses. This Lovato Electric LPCSL130K11PB5 assembly includes a yellow round lens, 24V LED lighting, and screw connection blocks for reliable integration.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome
  • Colour button (EF000190): Yellow
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm

More info

▲

LPCSL130K11PB5

KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Yellow with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum chromed plastic Ø22mm
Colour:
Yellow
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
12…30VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
3
Complete with mounting adapter:
Yes
Order codeLPCSL130K11PB5
Weight [g]51
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X006
Volume [cm³]160.62
Bar code [EAN13]8013975319802
HS Code85365080

43.09 £
