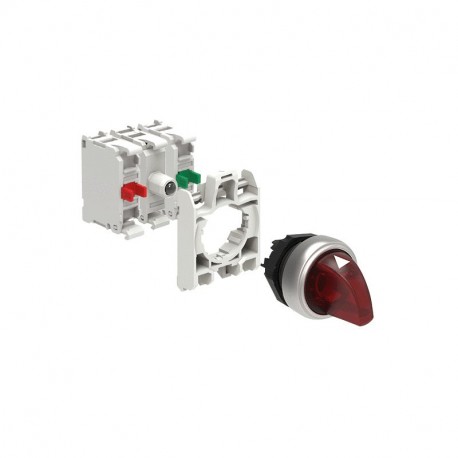

LOVATO ELECTRIC LPCSL130K11PB4 LPCSL130K11PB4 LOVATO KIT LPCSL1304 + 1NA + 1 NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCSL130K11PB4 LOVATO KIT LPCSL1304 + 1NA + 1 NC + LED 24V

LPCSL130K11PB4

LPCSL130K11PB4

LOVATO ELECTRIC

1 Pcs.

KIT LPCSL1304 + 1NA + 1 NC + LED 24V KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Red with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric LPCSL130K11PB4 kit offers reliable operator control functionality, combining a spring-return illuminated pushbutton with auxiliary contacts for machine automation tasks. Pushbuttons of this type are widely integrated into control desks and industrial enclosures to manage start, stop, or mode-switching operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome
  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm

More info

▲

LPCSL130K11PB4

KIT plastic illuminated selector switch actuator, 3 position, 1 0 2. Red with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Selector switches in KIT
Series:
Platinum chromed plastic Ø22mm
Colour:
Red
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Supply voltage:
12…30VAC/VDC
Type of lever for selector switches:
Short
Type of positions for selector switches:
3
Complete with mounting adapter:
Yes
Order codeLPCSL130K11PB4
Weight [g]51
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X006
Volume [cm³]160.62
Bar code [EAN13]8013975319765
HS Code85365080

43.09 £
