View larger
Images are for illustrative purposes only. Please refer to data sheet for details

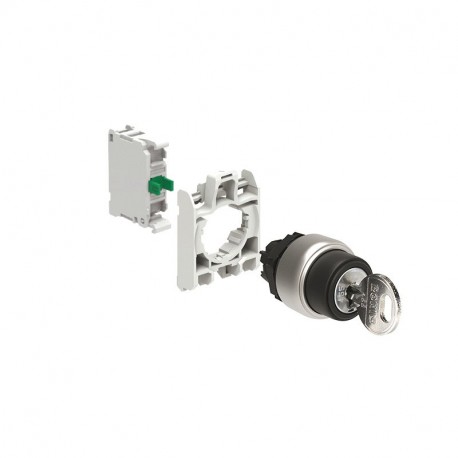

LPCS320K10 LOVATO KIT LPCS320 + 1NA
LPCS320K10
LPCS320K10
LOVATO ELECTRIC
1 Pcs.
KIT LPCS320 + 1NA
KIT plastic selector switch actuator key, 2 position, 0 1 with mounting adapter and 1 contact element, NO. Screw termination
Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲LPCS320K10
KIT plastic selector switch actuator key, 2 position, 0 1 with mounting adapter and 1 contact element, NO. Screw termination
Technical specifications
- Type of product:
- Selector switches in KIT
- Series:
- Platinum chromed plastic Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Symbol:
- No
- Type of terminals:
- Screw
- Type of lever for selector switches:
- Key
- Type of positions for selector switches:
- 2
- Complete with mounting adapter:
- Yes
| Order code | LPCS320K10 |
|---|---|
| Weight [g] | 59.4 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X005 |
| Volume [cm³] | 125.337 |
| Bar code [EAN13] | 8013975319833 |
| HS Code | 85365080 |
36.93 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Type of electric connection (EF003961) | Screw connection |
| Colour front ring (EF002429) | Chrome |
| Colour button (EF000190) | Black |
| Construction type lens (EF006253) | Round |
| Degree of protection (NEMA) (EF011959) | Other |
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
