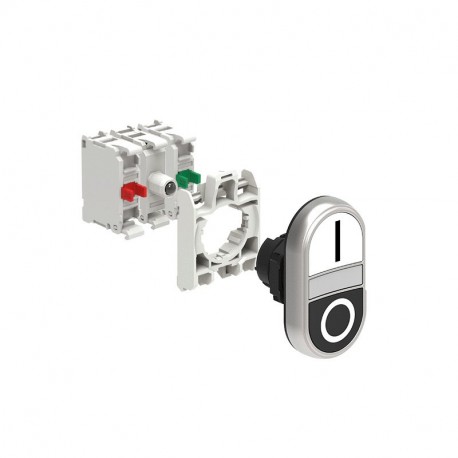

LOVATO ELECTRIC LPCBL7124K11PM LPCBL7124K11PM LOVATO KIT LPCBL7124 + 1NA + 1 NC + LED 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCBL7124K11PM LOVATO KIT LPCBL7124 + 1NA + 1 NC + LED 230V

LPCBL7124K11PM

LPCBL7124K11PM

LOVATO ELECTRIC

1 Pcs.

KIT LPCBL7124 + 1NA + 1 NC + LED 230V KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, White Black/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated combination pushbutton integrates visual status indication with manual switching capability in a single panel-mounted unit. Operators use these versatile controls to execute commands while receiving immediate feedback regarding system operational states. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of button (EF001546): Combination
  • Colour button (EF000190): Black and white
  • Type of electric connection (EF003961): Screw connection
  • Construction type lens (EF006253): Round
  • Colour front ring (EF002429): Chrome
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 230 V
  • Height opening (EF004778): 22 mm

More info

▲

LPCBL7124K11PM

KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, White Black/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Technical specifications

Type of product:
Pushbuttons in KIT
Type of actuator:
Double-touch with two flush pushbuttons
Series:
Platinum chromed plastic Ø22mm
Colour:
White/Black
Illuminated element:
Yes
Symbol:
Yes
Type of terminals:
Screw
Latching mechanism:
Spring return
Supply voltage:
185…265VAC/VDC
Complete with mounting adapter:
Yes
Order codeLPCBL7124K11PM
Weight [g]66
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]190.86
Bar code [EAN13]8013975319949
HS Code85365080

37.36 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
