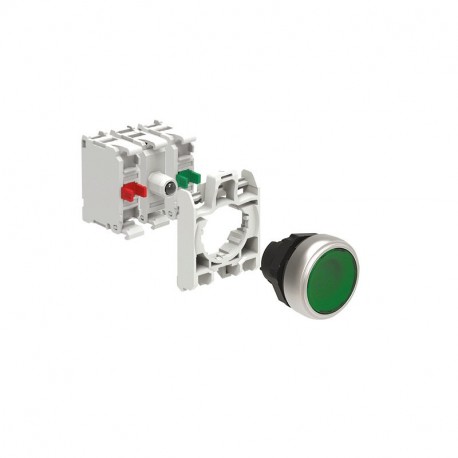

LOVATO ELECTRIC LPCBL103K11PM3 LPCBL103K11PM3 LOVATO KIT LPCBL103 + 1NA + 1 NC + LED 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCBL103K11PM3 LOVATO KIT LPCBL103 + 1NA + 1 NC + LED 230V

LPCBL103K11PM3

LPCBL103K11PM3

LOVATO ELECTRIC

1 Pcs.

KIT LPCBL103 + 1NA + 1 NC + LED 230V KIT plastic illuminated button actuator, spring return, flush, green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton kit provides a complete operator control assembly for industrial control panels, enabling manual switching and status monitoring. The spring-return mechanism ensures momentary contact action for controlling automated machine cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of button (EF001546): Flat
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome
  • Colour button (EF000190): Green
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 230 V
  • Height opening (EF004778): 22 mm

More info

▲

LPCBL103K11PM3

KIT plastic illuminated button actuator, spring return, flush, green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 185...265VAC
  • Type of product:Pushbuttons and selector switches in KIT
  • Series:Platinum chromed plastic Ø22mm
  • Colour:Green
  • Illuminated element:Yes
  • Symbol:No
  • Terminals type:Screw
  • Latching mechanism:Spring return
  • Supply voltage:185…265VAC/VDC
  • Complete with mounting adapter:Yes
Order codeLPCBL103K11PM3
Weight [g]49.2
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X005
Volume [cm³]149.78
Bar code [EAN13]8013975319567
HS Code85365080

34.77 £
