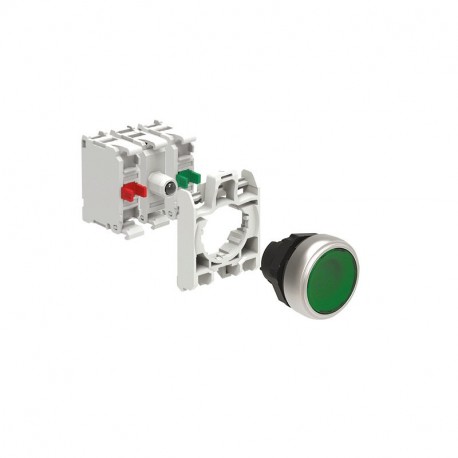

LOVATO ELECTRIC LPCBL103K11PB3 LPCBL103K11PB3 LOVATO KIT LPCBL103 + 1NA + 1 NC + LED 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LPCBL103K11PB3 LOVATO KIT LPCBL103 + 1NA + 1 NC + LED 24V

LPCBL103K11PB3

LPCBL103K11PB3

LOVATO ELECTRIC

1 Pcs.

KIT LPCBL103 + 1NA + 1 NC + LED 24V KIT plastic illuminated button actuator, spring return, flush, green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Automation > Push button, complete
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton kit provides machine operators with immediate tactile control and visual feedback across industrial manufacturing processes. This Lovato Electric LPCBL103K11PB3 assembly ensures reliable performance in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Type of button (EF001546): Flat
  • Type of electric connection (EF003961): Screw connection
  • Colour front ring (EF002429): Chrome
  • Colour button (EF000190): Green
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Supply voltage lamp (EF006522): 24 V
  • Height opening (EF004778): 22 mm

More info

▲

LPCBL103K11PB3

KIT plastic illuminated button actuator, spring return, flush, green with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Pushbuttons in KIT
Type of actuator:
Flush
Series:
Platinum chromed plastic Ø22mm
Colour:
Green
Illuminated element:
Yes
Symbol:
No
Type of terminals:
Screw
Latching mechanism:
Spring return
Supply voltage:
12…30VAC/VDC
Complete with mounting adapter:
Yes
Order codeLPCBL103K11PB3
Weight [g]48.4
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X005
Volume [cm³]149.78
Bar code [EAN13]8013975319550
HS Code85365080

30.44 £
