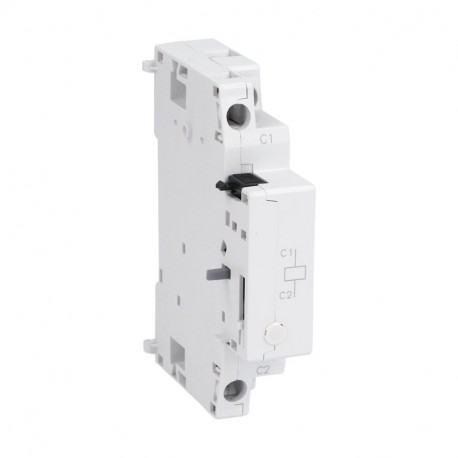

P1X16230 LOVATO SHUNT TRIP RELEASE, 110…415V 50/60HZ, SIDE MOUNT
P1X16230
16230
LOVATO ELECTRIC
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Miniature and residual circuit breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric shunt trip release, part P1X16230, is a side-mounted accessory device designed to trip power circuit breakers remotely when energized by an external control voltage. These releases provide essential safety shutoff capabilities in automated industrial safety systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electric connection (EF003961): Screw connection
- Rated control supply voltage AC 60 Hz (EF003979): 110 V
- Rated control supply voltage AC 50 Hz (EF003978): 110 V
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
- Suitable for off-load switch (EF001543): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
More info
▲P1X16230
Shunt trip release, 110...415V 50/60Hz, side mount
Technical specifications
- Type of product:
- Accessories
- Type of accessories:
- Shunt trip release
- Accessories for:
- P1MB…; P1RD…; P1RE…
| Order code | P1X16230 |
|---|---|
| Weight [g] | 88 |
| Qty. per package | 8 |
| Multiple qty. of packs per order | 8 |
| Package dimensions [mm] | 255X100X085 |
| Volume [cm³] | 270.938 |
| Bar code [EAN13] | 8013975204931 |
| HS Code | 85389099 |
