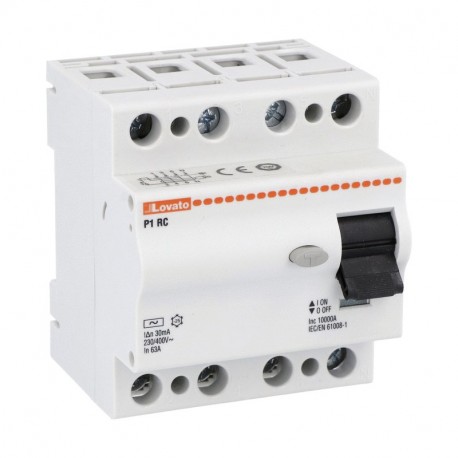

LOVATO ELECTRIC P1 RC 4P 63 AC030 P1 RC 4P 63 AC030 P1RC4P63AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1 RC 4P 63 AC030 P1RC4P63AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A..

P1 RC 4P 63 AC030

P1RC4P63AC030

LOVATO ELECTRIC

1 Pcs.

RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P - TYPE AC, 63A RESIDUAL CURRENT DEVICE 4P 63A IDN 30MA PURE RESIDUAL CURRENT CIRCUIT BREAKER, 2 AND 4 MODULES, 4P AC TYPE, 63A, 30mA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric residual current operated circuit breaker serves as an essential safety switch in electrical switchboards, detecting minor leakage currents to protect personnel from electric shocks. These units automatically isolate circuits when insulation faults compromise system integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Weight [g]: 326
  • Package dimensions [mm]: 115X076X078
  • Volume [cm³]: 681.72
  • Bar code [EAN13]: 8013975204825
  • HS Code: 85362010
  • Degree of protection (IP) (EF005474): IP20
  • Frequency (EF005455): 50/60 Hz
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): No
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No

More info

▲
Weight [g]326
Package dimensions [mm]115X076X078
Volume [cm³]681.72
Bar code [EAN13]8013975204825
HS Code85362010

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
