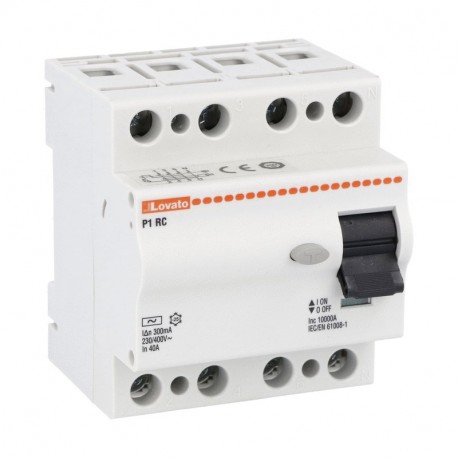

LOVATO ELECTRIC P1 RC 4P 40 AC030 P1 RC 4P 40 AC030 P1RC4P40AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1 RC 4P 40 AC030 P1RC4P40AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A..

P1 RC 4P 40 AC030

P1RC4P40AC030

LOVATO ELECTRIC

1 Pcs.

RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P - TYPE AC, 40A RESIDUAL CURRENT DEVICE 4P 40A IDN 30MA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric part number P1 RC 4P 40 AC030 is a residual current operated circuit breaker engineered to guard electrical circuits against ground fault currents and potential insulation failures. These protective devices are standard components in industrial control panels and building management systems to prevent electrical hazards and equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Weight [g]: 326
  • Package dimensions [mm]: 115X076X078
  • Volume [cm³]: 681.72
  • Bar code [EAN13]: 8013975204801
  • HS Code: 85362010
  • Degree of protection (IP) (EF005474): IP20
  • Frequency (EF005455): 50/60 Hz
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): No
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No

More info

▲
Weight [g]326
Package dimensions [mm]115X076X078
Volume [cm³]681.72
Bar code [EAN13]8013975204801
HS Code85362010

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
