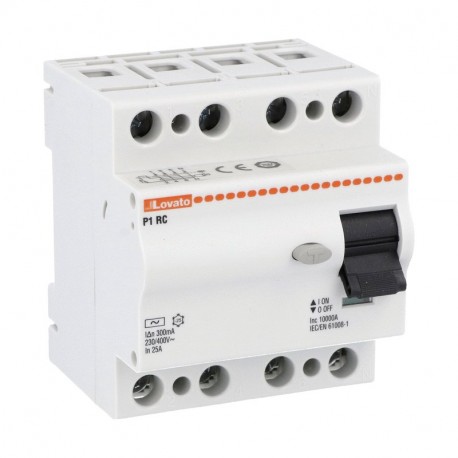

LOVATO ELECTRIC P1 RC 4P 25 AC300 P1 RC 4P 25 AC300 P1RC4P25AC300 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1 RC 4P 25 AC300 P1RC4P25AC300 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P TYPE A..

P1 RC 4P 25 AC300

P1RC4P25AC300

LOVATO ELECTRIC

1 Pcs.

RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 4P - TYPE AC, 25A RESIDUAL CURRENT DEVICE 4P 25A IDN 300MA PURE RESIDUAL CURRENT CIRCUIT BREAKER, 2 AND 4 MODULES, 4P AC TYPE, 25A, 300mA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensuring personnel safety through rapid detection of insulation faults, the Lovato Electric P1 RC 4P 25 AC300 residual current operated circuit breaker interrupts faulty circuits before they can cause injury. These devices are standard integration components in electrical switchboards for commercial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Weight [g]: 326
  • Dimensions of packing [mm]: 115X076X078
  • Volume[cm3]: 681.72
  • Barcode [EAN13]: 8013975204795
  • HS code: 85362010
  • Degree of protection (IP) (EF005474): IP20
  • Frequency (EF005455): 50/60 Hz
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): No
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No

More info

▲
Weight [g]326
Dimensions of packing [mm]115X076X078
Volume[cm3]681.72
Barcode [EAN13]8013975204795
HS code85362010

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
