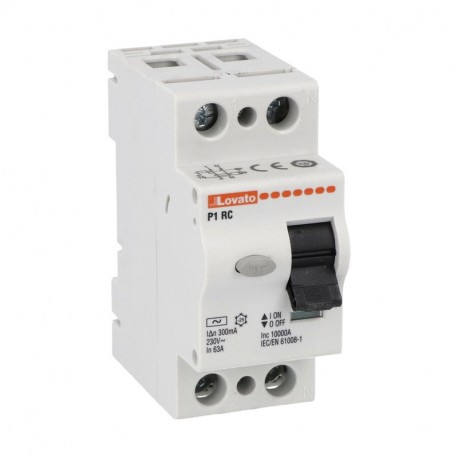

LOVATO ELECTRIC P1 RC 2P 63 AC030 P1 RC 2P 63 AC030 P1RC2P63AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1 RC 2P 63 AC030 P1RC2P63AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A..

P1 RC 2P 63 AC030

P1RC2P63AC030

LOVATO ELECTRIC

1 Pcs.

RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P - TYPE AC, 63A RESIDUAL CURRENT DEVICE 2P 63A IDN 30MA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric P1 RC 2P 63 AC030 residual current operated circuit breaker serves as a vital protective element in control panels, designed to interrupt power when stray leakage currents are identified. It prevents electrical hazards and protects downstream electrical infrastructure from ground faults.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Weight [g]: 185
  • Package dimensions [mm]: 115X040X080
  • Volume [cm³]: 368
  • Bar code [EAN13]: 8013975204702
  • HS Code: 85362010
  • Degree of protection (IP) (EF005474): IP20
  • Frequency (EF005455): 50/60 Hz
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): No
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No

More info

▲
Weight [g]185
Package dimensions [mm]115X040X080
Volume [cm³]368
Bar code [EAN13]8013975204702
HS Code85362010

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
