View larger
Images are for illustrative purposes only. Please refer to data sheet for details

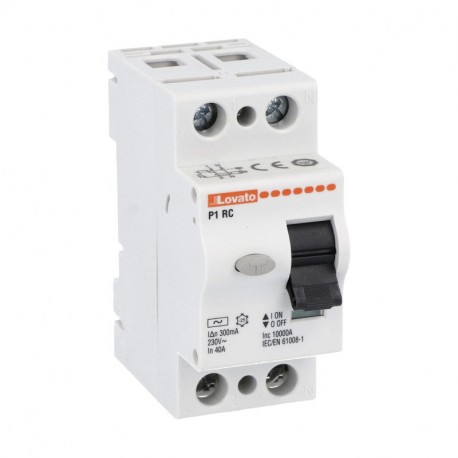

P1 RC 2P 40 AC300 P1RC2P40AC300 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A..
P1 RC 2P 40 AC300
P1RC2P40AC300
LOVATO ELECTRIC
1 Pcs.
RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P - TYPE AC, 40A
RESIDUAL CURRENT DEVICE 2P 40A IDN 300MA
Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Weight [g] | 185 |
| Package dimensions [mm] | 115X040X080 |
| Volume [cm³] | 368 |
| Bar code [EAN13] | 8013975204696 |
| HS Code | 85362010 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Frequency (EF005455) | 50/60 Hz |
| Leakage current type (EF002560) | AC |
| Voltage type (EF000187) | AC |
| Mounting method (EF000003) | DIN rail |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Additional equipment possible (EF008148) | No |
| With interlocking device (EF007385) | No |
| Explosion-proof (EF004663) | No |
| Short-time delayed tripping (EF003604) | No |
| Selective protection (EF002561) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Width in number of modular spacings (EF002950) | 2 |
| Pollution degree (EF002570) | 2 |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Rated fault current (EF002358) | 10 A |
| Number of poles (EF001391) | 2 |
| Rated insulation voltage Ui (EF001366) | 400 V |
| Rated voltage (EF000228) | 230 V |
| Rated current (EF000227) | 40 A |
| Built-in depth (EF000218) | 66 mm |
