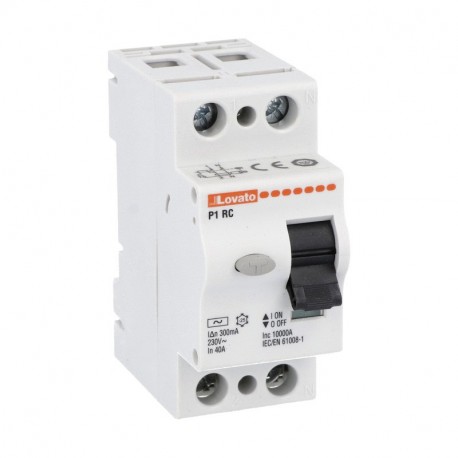

LOVATO ELECTRIC P1 RC 2P 40 AC030 P1 RC 2P 40 AC030 P1RC2P40AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1 RC 2P 40 AC030 P1RC2P40AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A..

P1 RC 2P 40 AC030

P1RC2P40AC030

LOVATO ELECTRIC

1 Pcs.

RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P - TYPE AC, 40A RESIDUAL CURRENT DEVICE 2P 40A IDN 30MA

Automation > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensuring reliable fault protection in commercial switchboards, a P1 RC 2P 40 AC030 P1RC2P40AC030 LOVATO RESIDUAL CURRENT OPERATED CIRCUIT BREAKER, 2 AND 4 MODULES, 2P TYPE A.. detects minor current leakages to ground. Such devices are essential for preventing electrical shock hazards and protecting equipment assets from ground-fault damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Weight [g]: 185
  • Package dimensions [mm]: 115X040X080
  • Volume [cm³]: 368
  • Bar code [EAN13]: 8013975204689
  • HS Code: 85362010
  • Degree of protection (IP) (EF005474): IP20
  • Frequency (EF005455): 50/60 Hz
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Ambient temperature during operating (EF007515): -25 °C
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Additional equipment possible (EF008148): No
  • With interlocking device (EF007385): No
  • Explosion-proof (EF004663): No
  • Short-time delayed tripping (EF003604): No

More info

▲
Weight [g]185
Package dimensions [mm]115X040X080
Volume [cm³]368
Bar code [EAN13]8013975204689
HS Code85362010
