View larger
Images are for illustrative purposes only. Please refer to data sheet for details

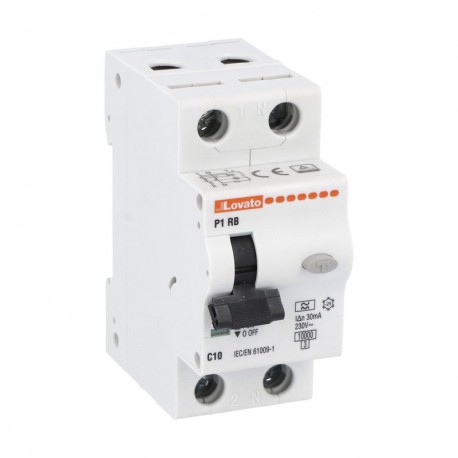

P1 RB 1N C10 A030 P1RB1NC10A030 LOVATO RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION, 10KA. 2..
P1 RB 1N C10 A030
P1RB1NC10A030
LOVATO ELECTRIC
1 Pcs.
RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION, 10KA. 2 MODULES, 1P+N - TYPE A, 40A
RCBO 1P+N C 10A IDN 30MA 10KA
Automation > Earth leakage circuit breaker
Miniature and residual circuit breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Disconnection characteristic (EF012587) | Undelayed |
| Degree of protection (IP) (EF005474) | IP20 |
| Frequency (EF005455) | 50/60 Hz |
| Leakage current type (EF002560) | A |
| Release characteristic (EF000889) | C |
| Voltage type (EF000187) | AC |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Anti-nuisance tripping version (EF009497) | No |
| With interlocking device (EF007385) | No |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 10 kA |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 1 |
| Width in number of modular spacings (EF002950) | 2 |
| Pollution degree (EF002570) | 2 |
| Over voltage category (EF002569) | 3 |
| Rated fault current (EF002358) | 10 A |
| Rated insulation voltage Ui (EF001366) | 400 V |
| Rated voltage (EF000228) | 230 V |
| Rated current (EF000227) | 10 A |
| Built-in depth (EF000218) | 66 mm |
